Entity Framework是.NET平台下的一种简单易用的ORM框架，它既便于Domain Model和持久层的OO设计，也提高了代码的可维护性。但在使用中发现，有几类业务场景是EF不太擅长的，比如批量写入大量同类数据，为此本人做了一些对比测试，以供大家参考。

现假设我们需要做一个用户批量导入的功能，需要从某处导入1w个User到数据库，本人听说过的常见做法有如下几种：

1. 使用ADO.NET单条SqlCommand执行10000次
2. 使用StringBuilder拼接SQL语句，将10000条Insert语句拼接成1到若干条SqlCommand执行
3. 使用EntityFramework的基本功能进行插入
4. 使用SqlBulkCopy进行批量插入
5. 使用存储过程，其中的2种分支分别对应上述1、2用例，即简化过的SqlCommand。

数据库准备工作：

class="code_img_closed" src="/Upload/Images/2013090219/0015B68B3C38AA5B.gif" alt="" />logs_code_hide('8c146c33-1195-4688-9360-7ad15406c1c0',event)" src="/Upload/Images/2013090219/2B1B950FA3DF188F.gif" alt="" />

 1 CREATE DATABASE [BulkInsertTest]
 2 GO
 3
 4 USE [BulkInsertTest]
 5 GO
 6
 7 CREATE TABLE [dbo].[User](
 8     [Id] [int] IDENTITY(1,1) NOT NULL,
 9     [Name] [nvarchar](50) NOT NULL,
10     [Birthday] [date] NOT NULL,
11     [Gender] [char](1) NOT NULL,
12     [Email] [nvarchar](50) NOT NULL,
13     [Deleted] [bit] NOT NULL,
14  CONSTRAINT [PK_User] PRIMARY KEY CLUSTERED
15 (
16     [Id] ASC
17 )WITH (PAD_INDEX  = OFF, STATISTICS_NORECOMPUTE  = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS  = ON, ALLOW_PAGE_LOCKS  = ON) ON [PRIMARY]
18 ) ON [PRIMARY]
19
20 GO
21
22 CREATE PROCEDURE [dbo].[InsertUser]
23     @Name nvarchar(50)
24            ,@Birthday date
25            ,@Gender char(1)
26            ,@Email nvarchar(50)
27            ,@Deleted bit
28 AS
29 BEGIN
30     INSERT INTO [BulkInsertTest].[dbo].[User]
31            ([Name]
32            ,[Birthday]
33            ,[Gender]
34            ,[Email]
35            ,[Deleted])
36      VALUES
37            (@Name,@Birthday,@Gender,@Email,@Deleted)
38
39 END
40
41 GO

View Code

C#代码：

  1 using System;
  2 using System.Data;
  3 using System.Data.SqlClient;
  4 using System.Diagnostics;
  5 using System.Linq;
  6 using System.Text;
  7
  8 namespace ConsoleApplication5
  9 {
 10     class Program
 11     {
 12         private const string ConnectionString = "Data Source=.;Integrated Security=True;Initial Catalog=BulkInsertTest;";
 13
 14         static void Main(string[] args)
 15         {
 16             for (int i = 0; i < 3; i++)
 17             {
 18                 InsertBySqlBulkCopy();
 19                 InsertBySqlCmd();
 20                 InsertByStoreProcedure();
 21                 InsertByEntityFramework();
 22             }
 23             Console.ReadLine();
 24         }
 25
 26         private static void InsertBySqlCmd()
 27         {
 28             Stopwatch stopwatch = Stopwatch.StartNew();
 29             using (var connection = new SqlConnection(ConnectionString))
 30             {
 31                 SqlTransaction transaction = null;
 32                 connection.Open();
 33                 try
 34                 {
 35                     transaction = connection.BeginTransaction();
 36                     StringBuilder sb = new StringBuilder();
 37                     for (int j = 0; j < 10000; j++)
 38                     {
 39                         sb.AppendFormat(@"INSERT INTO dbo.[User] ([Name],[Birthday],[Gender],[Email],[Deleted])
 40 VALUES('{0}','{1:yyyy-MM-dd}','{2}','{3}',{4});", "name" + j, DateTime.Now.AddDays(j), 'M', "user" + j + "@abc.com", 0);
 41                     }
 42                     var sqlCmd = connection.CreateCommand();
 43                     sqlCmd.CommandText = sb.ToString();
 44                     sqlCmd.Transaction = transaction;
 45                     sqlCmd.ExecuteNonQuery();
 46                     transaction.Commit();
 47                 }
 48                 catch
 49                 {
 50                     if (transaction != null)
 51                     {
 52                         transaction.Rollback();
 53                     }
 54                     throw;
 55                 }
 56             }
 57             stopwatch.Stop();
 58             Console.WriteLine("SqlCommand time cost: {0}ms", stopwatch.ElapsedMilliseconds);
 59         }
 60
 61         private static void InsertByStoreProcedure()
 62         {
 63             Stopwatch stopwatch = Stopwatch.StartNew();
 64             using (var connection = new SqlConnection(ConnectionString))
 65             {
 66                 SqlTransaction transaction = null;
 67                 connection.Open();
 68                 for (int i = 0; i < 10; i++)
 69                 {
 70                     try
 71                     {
 72                         transaction = connection.BeginTransaction();
 73                         StringBuilder sb = new StringBuilder();
 74                         for (int j = 0; j < 1000; j++)
 75                         {
 76                             sb.AppendFormat(@"EXECUTE [dbo].[InsertUser] '{0}','{1:yyyy-MM-dd}','{2}','{3}',{4};",
 77                                             "name" + j, DateTime.Now.AddDays(j), 'M', "user" + j + "@abc.com", 0);
 78                         }
 79                         var sqlCmd = connection.CreateCommand();
 80                         sqlCmd.CommandText = sb.ToString();
 81                         sqlCmd.Transaction = transaction;
 82                         sqlCmd.ExecuteNonQuery();
 83                         transaction.Commit();
 84                     }
 85                     catch
 86                     {
 87                         if (transaction != null)
 88                         {
 89                             transaction.Rollback();
 90                         }
 91                         throw;
 92                     }
 93                 }
 94             }
 95             stopwatch.Stop();
 96             Console.WriteLine("StoreProcedure time cost: {0}ms", stopwatch.ElapsedMilliseconds);
 97         }
 98
 99         private static void InsertBySqlBulkCopy()
100         {
101             Stopwatch stopwatch = Stopwatch.StartNew();
102
103             DataTable table = new DataTable();
104             table.Columns.Add("Name", typeof (string));
105             table.Columns.Add("Birthday", typeof (DateTime));
106             table.Columns.Add("Gender", typeof (char));
107             table.Columns.Add("Email", typeof (string));
108             table.Columns.Add("Deleted", typeof (bool));
109             for (int i = 0; i < 10000; i++)
110             {
111                 var row = table.NewRow();
112                 row["Name"] = "name" + i;
113                 row["Birthday"] = DateTime.Now.AddDays(i);
114                 row["Gender"] = 'M';
115                 row["Email"] = "user" + i + "@abc.com";
116                 row["Deleted"] = false;
117                 table.Rows.Add(row);
118             }
119
120             InsertIntoMembers(table);
121             stopwatch.Stop();
122             Console.WriteLine("SqlBulkCopy time cost: {0}ms", stopwatch.ElapsedMilliseconds);
123         }
124
125         private static void InsertIntoMembers(DataTable dataTable)
126         {
127             using (var connection = new SqlConnection(ConnectionString))
128             {
129                 SqlTransaction transaction = null;
130                 connection.Open();
131                 try
132                 {
133                     transaction = connection.BeginTransaction();
134                     using (var sqlBulkCopy = new SqlBulkCopy(connection, SqlBulkCopyOptions.TableLock, transaction))
135                     {
136                         sqlBulkCopy.DestinationTableName = "[User]";
137                         //sqlBulkCopy.ColumnMappings.Add("Id", "Id");
138                         sqlBulkCopy.ColumnMappings.Add("Name", "Name");
139                         sqlBulkCopy.ColumnMappings.Add("Birthday", "Birthday");
140                         sqlBulkCopy.ColumnMappings.Add("Gender", "Gender");
141                         sqlBulkCopy.ColumnMappings.Add("Email", "Email");
142                         sqlBulkCopy.ColumnMappings.Add("Deleted", "Deleted");
143
144                         sqlBulkCopy.WriteToServer(dataTable);
145                     }
146                     transaction.Commit();
147                 }
148                 catch
149                 {
150                     if (transaction!=null)
151                     {
152                         transaction.Rollback();
153                     }
154                     throw;
155                 }
156             }
157         }
158
159         private static void InsertByEntityFramework()
160         {
161             Stopwatch stopwatch = Stopwatch.StartNew();
162             using (MyDbContext context = new MyDbContext(ConnectionString))
163             {
164                 context.Configuration.AutoDetectChangesEnabled = false;
165                 context.Configuration.ValidateOnSaveEnabled = false;
166                 for (int i = 0; i < 10000; i++)
167                 {
168                     context.Users.Add(new User()
169                                            {
170                                                Name = "name" + i,
171                                                Birthday = DateTime.Now.AddDays(i),
172                                                Gender = "F",
173                                                Email = "user" + i + "@abc.com",
174                                                Deleted = false
175                                            });
176                 }
177                 context.SaveChanges();
178             }
179
180             stopwatch.Stop();
181             Console.WriteLine("EntityFramework time cost: {0}ms", stopwatch.ElapsedMilliseconds);
182         }
183     }
184 }

View Code

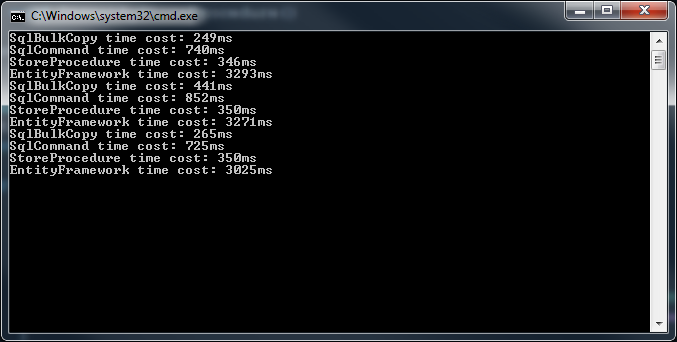

测试结果：



结论：从性能上来说，SqlBulkCopy和StoreProcedure胜于拼Sql，前三者可以很好的解决Entity Framework批量操作的性能问题。但另一方面，我们还要从插入的数据总量、代码可维护性等方面加以权衡，比如插入数据量较小或是低压力时间段自动执行的话，EF仍然是不错的选择。而代码可维护性方面ADO.NET的实现明显可读性和重构友好型都弱于EF实现，所以对于需求变动较多的领域模型而言需要更多的抽象和单元测试，以此来确保产品的持续发展。
