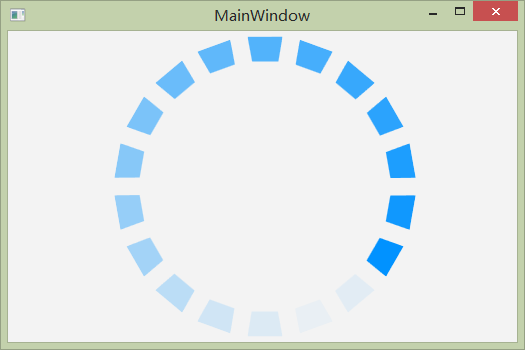

今天来点实际的,项目中可以真实使用的,一个Loading的动画,最后封装成一个控件,可以直接使用在项目中,先上图:

整个设计比较简单,就是在界面上画18个Path,然后通过动画改变OpacityMask的值来实现一种动态的效果.

因为整个过程比较简单,所以其实没有用到Blend,唯一一个需要注意的是Path的路径值是请美工从PS里生成的,路径如下:

<Geometry x:Key="Block">
            M291.15499,85.897525
            C291.15499,85.897525
             301.88917,85.87921
             301.88917,85.87921
             301.88917,85.87921
             300.38339,94.355061
             300.38339,94.355061
             300.38339,94.355061
             292.85366,94.355042
             292.85366,94.355042
             292.85366,94.355042
             291.15499,85.897525
             291.15499,85.897525Z
</Geometry>

Path的代码如下,每个Path一次旋转特定的角度围成一个圆形

<Path x:Name="block0" Style="{StaticResource PathStyle}" Data="{StaticResource Block}"  OpacityMask="#00000000" >
     <Path.RenderTransform>
           <RotateTransform Angle="180"/>
      </Path.RenderTransform>
</Path>

<Style x:Key="PathStyle" TargetType="Path">
            <Setter Property="Fill" Value="#FF0092FF"></Setter>
            <Setter Property="Stretch" Value="Fill"></Setter>
            <Setter Property="RenderTransformOrigin" Value="0.5,5"></Setter>
            <Setter Property="VerticalAlignment" Value="Top"></Setter>
            <Setter Property="Height" Value="30"></Setter>
</Style>

单个Path的动画:

<ColorAnimationUsingKeyFrames Duration="00:00:03.6" Storyboard.TargetName="block0" Storyboard.TargetProperty="(UIElement.OpacityMask).(SolidColorBrush.Color)">
                <LinearColorKeyFrame KeyTime="00:00:00.0" Value="#FF000000"/>
                <LinearColorKeyFrame KeyTime="00:00:00.2" Value="#EF000000"/>
                <LinearColorKeyFrame KeyTime="00:00:00.4" Value="#E2000000"/>
                <LinearColorKeyFrame KeyTime="00:00:00.6" Value="#D3000000"/>
                <LinearColorKeyFrame KeyTime="00:00:00.8" Value="#C6000000"/>
                <LinearColorKeyFrame KeyTime="00:00:01.0" Value="#B7000000"/>
                <LinearColorKeyFrame KeyTime="00:00:01.2" Value="#AA000000"/>
                <LinearColorKeyFrame KeyTime="00:00:01.4" Value="#9B000000"/>
                <LinearColorKeyFrame KeyTime="00:00:01.6" Value="#8E000000"/>
                <LinearColorKeyFrame KeyTime="00:00:01.8" Value="#7F000000"/>
                <LinearColorKeyFrame KeyTime="00:00:02.0" Value="#72000000"/>
                <LinearColorKeyFrame KeyTime="00:00:02.2" Value="#63000000"/>
                <LinearColorKeyFrame KeyTime="00:00:02.4" Value="#56000000"/>
                <LinearColorKeyFrame KeyTime="00:00:02.6" Value="#3D000000"/>
                <LinearColorKeyFrame KeyTime="00:00:02.8" Value="#26000000"/>
                <LinearColorKeyFrame KeyTime="00:00:03.0" Value="#19000000"/>
                <LinearColorKeyFrame KeyTime="00:00:03.2" Value="#0C000000"/>
                <LinearColorKeyFrame KeyTime="00:00:03.4" Value="#00000000"/>
                <LinearColorKeyFrame KeyTime="00:00:03.6" Value="#FF000000"/>
            </ColorAnimationUsingKeyFrames>

源代码下载:

http://files.cnblogs.com/youngytj/LoadingAnimations.rar
