聚集索引表插入数据和删除数据的方式是怎样的

 2013/7/25 11:42:43  桦仔  博客园  我要评论(0)
  • 摘要:聚集索引表插入数据和删除数据的方式是怎样的根据《SQLSERVER聚集索引与非聚集索引的再次研究(上)》里说的,聚集索引维护着创建第一个聚集索引时的第一个字段的顺序来排序当插入记录的时候,或者重新组织索引的时候都会按照字段顺序来排序今天来做一个实验来验证一下--------------------------------------------------华丽的分割线-----------------------------------------------
  • 标签:索引 数据 方式

聚集索引表插入数据和删除数据的方式是怎样的

 根据《SQLSERVER聚集索引与非聚集索引的再次研究(上)》里说的,聚集索引维护着创建第一个聚集索引时的第一个字段的顺序来排序

当插入记录的时候,或者重新组织索引的时候都会按照字段顺序来排序

今天来做一个实验来验证一下

 --------------------------------------------------华丽的分割线------------------------------------------------

先创建一个聚集索引表

1 USE [pratice]
2 GO
3 --DROP TABLE ClusteredTable
4 CREATE TABLE ClusteredTable
5 ( id INT,
6 col2 CHAR(999),
7 col3 VARCHAR(10)
8 )

这个表每个行由int(4字节),char(999字节)和varchar(0字节组成),所以每行为1003个字节,

则8行占用空间1003*8=8024字节加上一些内部开销,可以容纳在一个页面

1 --创建聚集索引
2 CREATE CLUSTERED INDEX CIX ON ClusteredTable(id ASC)

插入数据

1 --由于聚集索引需要有2个数据页才会出现一个索引页,所以这里插入16条记录,16条记录就需要2个数据页
2 DECLARE @i INT
3 SET @i=1
4 WHILE(@i<32)
5 BEGIN
6 INSERT INTO [dbo].[ClusteredTable] ( [id], [col2], [col3] )
7 VALUES(@i,'xxx','')
8 SET @i=@i+2
9 END

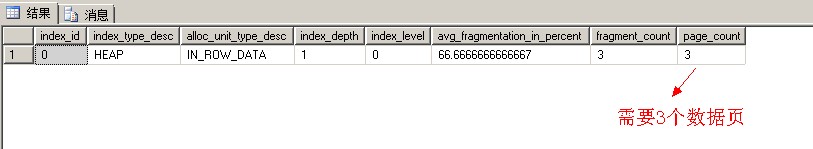

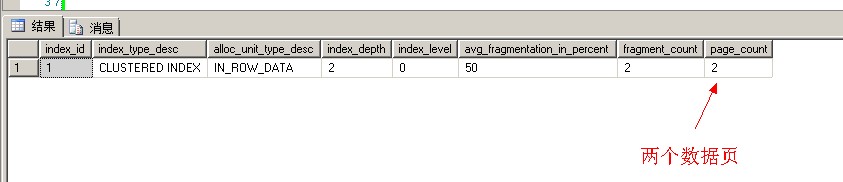

看一下所用的数据页数量

1 SELECT  [index_id], [index_type_desc], [alloc_unit_type_desc], [index_depth],
2         [index_level], [avg_fragmentation_in_percent], [fragment_count],
3         [page_count]
4 FROM    [sys].[dm_db_index_physical_stats](DB_ID('pratice'),
5                                            OBJECT_ID('pratice.dbo.ClusteredTable'),
6                                            NULL, NULL, NULL)



再创建一个表,用来保存DBCC IND的结果

class="code_img_closed" src="/Upload/Images/2013072511/0015B68B3C38AA5B.gif" alt="" />logs_code_hide('2ccbecb8-3baf-4597-9208-0e516877a125',event)" src="/Upload/Images/2013072511/2B1B950FA3DF188F.gif" alt="" />
 1 CREATE TABLE DBCCResult (
 2 PageFID NVARCHAR(200),
 3 PagePID NVARCHAR(200),
 4 IAMFID NVARCHAR(200),
 5 IAMPID NVARCHAR(200),
 6 ObjectID NVARCHAR(200),
 7 IndexID NVARCHAR(200),
 8 PartitionNumber NVARCHAR(200),
 9 PartitionID NVARCHAR(200),
10 iam_chain_type NVARCHAR(200),
11 PageType NVARCHAR(200),
12 IndexLevel NVARCHAR(200),
13 NextPageFID NVARCHAR(200),
14 NextPagePID NVARCHAR(200),
15 PrevPageFID NVARCHAR(200),
16 PrevPagePID NVARCHAR(200)
17 )
View Code

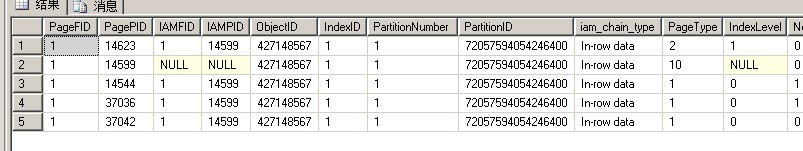

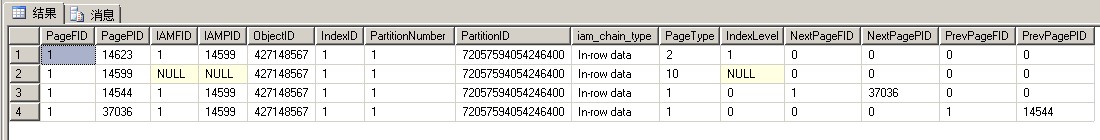

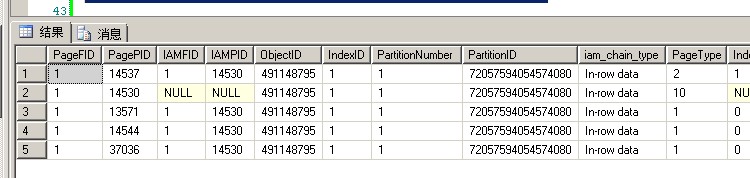

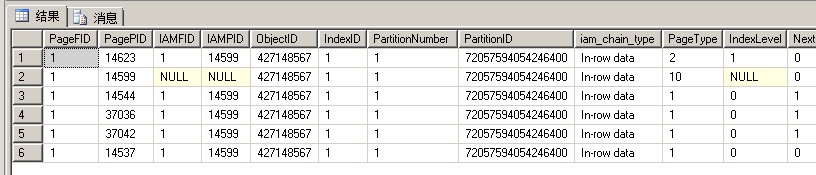

执行下面语句,看一下DBCC IND的结果
先说明一下:

PageType           分页类型:1:数据页面;2:索引页面;3:Lob_mixed_page;4:Lob_tree_page;10:IAM页面

IndexID            索引ID,0 代表堆, 1 代表聚集索引, 2-250 代表非聚集索引 大于250就是text或image字段

1 INSERT INTO DBCCResult EXEC ('DBCC IND(pratice,ClusteredTable,-1) ')
2
3 SELECT * FROM [dbo].[DBCCResult] ORDER BY [PageType] DESC

看一下页面内容

1 DBCC TRACEON(3604,-1)
2 GO
3 DBCC PAGE([pratice],1,14623,3) --索引页
4 GO
5 DBCC PAGE([pratice],1,14544,3)--数据页
6 GO
7 DBCC PAGE([pratice],1,37036,3)--数据页
8 GO

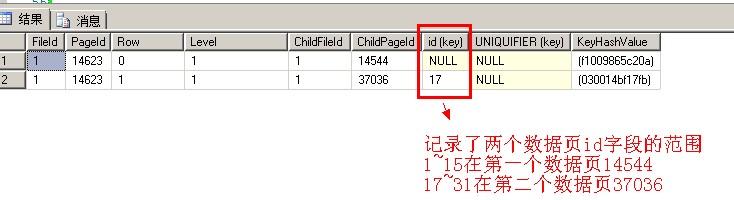

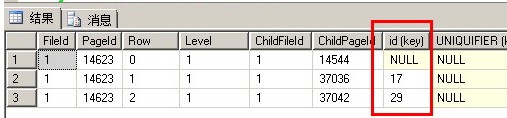

聚集索引页面

 数据页 14544  可以看到14544页里面保存的是1~15的记录  其中字段m_slotCnt = 8 表示本页面存储了8条记录

  1 PAGE: (1:14544)
  2
  3
  4 BUFFER:
  5
  6
  7 BUF @0x03F577E0
  8
  9 bpage = 0x19108000                   bhash = 0x00000000                   bpageno = (1:14544)
 10 bdbid = 5                            breferences = 0                      bUse1 = 12315
 11 bstat = 0x2c0000b                    blog = 0x32159bb                     bnext = 0x00000000
 12
 13 PAGE HEADER:
 14
 15
 16 Page @0x19108000
 17
 18 m_pageId = (1:14544)                 m_headerVersion = 1                  m_type = 1
 19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0x0
 20 m_objId (AllocUnitId.idObj) = 390    m_indexId (AllocUnitId.idInd) = 256
 21 Metadata: AllocUnitId = 72057594063486976
 22 Metadata: PartitionId = 72057594054246400                                 Metadata: IndexId = 1
 23 Metadata: ObjectId = 427148567       m_prevPage = (0:0)                   m_nextPage = (1:37036)
 24 pminlen = 1007                       m_slotCnt = 8                        m_freeCnt = 0
 25 m_freeData = 8176                    m_reservedCnt = 0                    m_lsn = (2773:397:15)
 26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
 27 m_tornBits = 0
 28
 29 Allocation Status
 30
 31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
 32 PFS (1:8088) = 0x60 MIXED_EXT ALLOCATED   0_PCT_FULL                      DIFF (1:6) = CHANGED
 33 ML (1:7) = NOT MIN_LOGGED
 34
 35 Slot 0 Offset 0x60 Length 1010
 36
 37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 38 Memory Dump @0x095CC060
 39
 40
 41 UNIQUIFIER = [NULL]
 42
 43 Slot 0 Column 1 Offset 0x4 Length 4
 44
 45 id = 1
 46
 47 Slot 0 Column 2 Offset 0x8 Length 999
 48
 49 col2 = xxx
 50
 51
 52 col3 = [NULL]
 53
 54 Slot 1 Offset 0x452 Length 1010
 55
 56 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 57 Memory Dump @0x095CC452
 58
 59
 60 UNIQUIFIER = [NULL]
 61
 62 Slot 1 Column 1 Offset 0x4 Length 4
 63
 64 id = 3
 65
 66 Slot 1 Column 2 Offset 0x8 Length 999
 67
 68 col2 = xxx
 69
 70 col3 = [NULL]
 71
 72 Slot 2 Offset 0x844 Length 1010
 73
 74 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 75 Memory Dump @0x095CC844
 76
 77
 78 UNIQUIFIER = [NULL]
 79
 80 Slot 2 Column 1 Offset 0x4 Length 4
 81
 82 id = 5
 83
 84 Slot 2 Column 2 Offset 0x8 Length 999
 85
 86 col2 = xxx
 87
 88 col3 = [NULL]
 89
 90 Slot 3 Offset 0xc36 Length 1010
 91
 92 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 93 Memory Dump @0x095CCC36
 94
 95
 96 UNIQUIFIER = [NULL]
 97
 98 Slot 3 Column 1 Offset 0x4 Length 4
 99
100 id = 7
101
102 Slot 3 Column 2 Offset 0x8 Length 999
103
104 col2 = xxx
105
106 col3 = [NULL]
107
108 Slot 4 Offset 0x1028 Length 1010
109
110 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
111 Memory Dump @0x095CD028
112
113
114 UNIQUIFIER = [NULL]
115
116 Slot 4 Column 1 Offset 0x4 Length 4
117
118 id = 9
119
120 Slot 4 Column 2 Offset 0x8 Length 999
121
122 col2 = xxx
123
124 col3 = [NULL]
125
126 Slot 5 Offset 0x141a Length 1010
127
128 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
129 Memory Dump @0x095CD41A
130
131 UNIQUIFIER = [NULL]
132
133 Slot 5 Column 1 Offset 0x4 Length 4
134
135 id = 11
136
137 Slot 5 Column 2 Offset 0x8 Length 999
138
139 col2 = xxx
140
141 col3 = [NULL]
142
143 Slot 6 Offset 0x180c Length 1010
144
145 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
146 Memory Dump @0x095CD80C
147
148
149 UNIQUIFIER = [NULL]
150
151 Slot 6 Column 1 Offset 0x4 Length 4
152
153 id = 13
154
155 Slot 6 Column 2 Offset 0x8 Length 999
156
157 col2 = xxx
158
159
160 col3 = [NULL]
161
162 Slot 7 Offset 0x1bfe Length 1010
163
164 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
165 Memory Dump @0x095CDBFE
166
167 UNIQUIFIER = [NULL]
168
169 Slot 7 Column 1 Offset 0x4 Length 4
170
171 id = 15
172
173 Slot 7 Column 2 Offset 0x8 Length 999
174
175 col2 = xxx
176
177 col3 = [NULL]
178
179
180 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code

  数据页 37036可以看到14544页里面保存的是17~31的记录  其中字段m_slotCnt = 8 表示本页面存储了8条记录

  1 PAGE: (1:37036)
  2
  3
  4 BUFFER:
  5
  6
  7 BUF @0x03F6F5F4
  8
  9 bpage = 0x19CD0000                   bhash = 0x00000000                   bpageno = (1:37036)
 10 bdbid = 5                            breferences = 0                      bUse1 = 12635
 11 bstat = 0x2c0000b                    blog = 0x212121bb                    bnext = 0x00000000
 12
 13 PAGE HEADER:
 14
 15
 16 Page @0x19CD0000
 17
 18 m_pageId = (1:37036)                 m_headerVersion = 1                  m_type = 1
 19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0x8000
 20 m_objId (AllocUnitId.idObj) = 390    m_indexId (AllocUnitId.idInd) = 256
 21 Metadata: AllocUnitId = 72057594063486976
 22 Metadata: PartitionId = 72057594054246400                                 Metadata: IndexId = 1
 23 Metadata: ObjectId = 427148567       m_prevPage = (1:14544)               m_nextPage = (0:0)
 24 pminlen = 1007                       m_slotCnt = 8                        m_freeCnt = 0
 25 m_freeData = 8176                    m_reservedCnt = 0                    m_lsn = (2773:421:2)
 26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
 27 m_tornBits = 0
 28
 29 Allocation Status
 30
 31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
 32 PFS (1:32352) = 0x60 MIXED_EXT ALLOCATED   0_PCT_FULL                     DIFF (1:6) = CHANGED
 33 ML (1:7) = NOT MIN_LOGGED
 34
 35 Slot 0 Offset 0x60 Length 1010
 36
 37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 38 Memory Dump @0x0A33C060
 39
 40
 41 UNIQUIFIER = [NULL]
 42
 43 Slot 0 Column 1 Offset 0x4 Length 4
 44
 45 id = 17
 46
 47 Slot 0 Column 2 Offset 0x8 Length 999
 48
 49 col2 = xxx
 50
 51 col3 = [NULL]
 52
 53 Slot 1 Offset 0x452 Length 1010
 54
 55 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 56 Memory Dump @0x0A33C452
 57
 58
 59 UNIQUIFIER = [NULL]
 60
 61 Slot 1 Column 1 Offset 0x4 Length 4
 62
 63 id = 19
 64
 65 Slot 1 Column 2 Offset 0x8 Length 999
 66
 67 col2 = xxx
 68
 69 col3 = [NULL]
 70
 71 Slot 2 Offset 0x844 Length 1010
 72
 73 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 74 Memory Dump @0x0A33C844
 75
 76
 77 UNIQUIFIER = [NULL]
 78
 79 Slot 2 Column 1 Offset 0x4 Length 4
 80
 81 id = 21
 82
 83 Slot 2 Column 2 Offset 0x8 Length 999
 84
 85 col2 = xxx
 86
 87 col3 = [NULL]
 88
 89 Slot 3 Offset 0xc36 Length 1010
 90
 91 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 92 Memory Dump @0x0A33CC36
 93
 94
 95 UNIQUIFIER = [NULL]
 96
 97 Slot 3 Column 1 Offset 0x4 Length 4
 98
 99 id = 23
100
101 Slot 3 Column 2 Offset 0x8 Length 999
102
103 col2 = xxx
104
105 col3 = [NULL]
106
107 Slot 4 Offset 0x1028 Length 1010
108
109 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
110 Memory Dump @0x0A33D028
111
112
113 UNIQUIFIER = [NULL]
114
115 Slot 4 Column 1 Offset 0x4 Length 4
116
117 id = 25
118
119 Slot 4 Column 2 Offset 0x8 Length 999
120
121 col2 = xxx
122
123 col3 = [NULL]
124
125 Slot 5 Offset 0x141a Length 1010
126
127 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
128 Memory Dump @0x0A33D41A
129
130
131 UNIQUIFIER = [NULL]
132
133 Slot 5 Column 1 Offset 0x4 Length 4
134
135 id = 27
136
137 Slot 5 Column 2 Offset 0x8 Length 999
138
139 col2 = xxx
140
141 col3 = [NULL]
142
143 Slot 6 Offset 0x180c Length 1010
144
145 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
146 Memory Dump @0x0A33D80C
147
148
149 UNIQUIFIER = [NULL]
150
151 Slot 6 Column 1 Offset 0x4 Length 4
152
153 id = 29
154
155 Slot 6 Column 2 Offset 0x8 Length 999
156
157 col2 = xxx
158
159
160 col3 = [NULL]
161
162 Slot 7 Offset 0x1bfe Length 1010
163
164 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
165 Memory Dump @0x0A33DBFE
166
167
168 UNIQUIFIER = [NULL]
169
170 Slot 7 Column 1 Offset 0x4 Length 4
171
172 id = 31
173
174 Slot 7 Column 2 Offset 0x8 Length 999
175
176 col2 = xxx
177
178 col3 = [NULL]
179
180
181 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code


---------------------------------------------------------华丽的分割线------------------------------------------------

我们创建一个堆表以作为对比

 1 USE [pratice]
 2 GO
 3 --DROP TABLE HeapTable
 4 CREATE TABLE HeapTable
 5 ( id INT,
 6 col2 CHAR(999),
 7 col3 VARCHAR(10)
 8 )
 9
10 DECLARE @i INT
11 SET @i=1
12 WHILE(@i<32)
13 BEGIN
14 INSERT INTO [dbo].[HeapTable] ( [id], [col2], [col3] )
15 VALUES(@i,'xxx','')
16 SET @i=@i+2
17 END


看一下所用的数据页数量

1 SELECT  [index_id], [index_type_desc], [alloc_unit_type_desc], [index_depth],
2         [index_level], [avg_fragmentation_in_percent], [fragment_count],
3         [page_count]
4 FROM    [sys].[dm_db_index_physical_stats](DB_ID('pratice'),
5                                            OBJECT_ID('pratice.dbo.HeapTable'),
6                                            NULL, NULL, NULL)

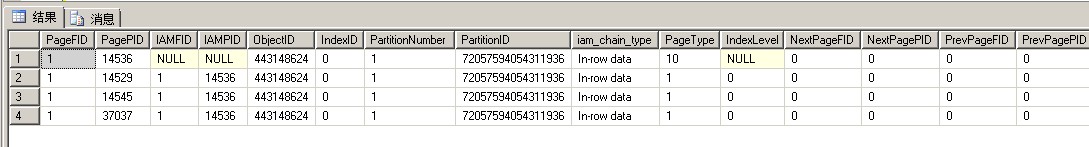

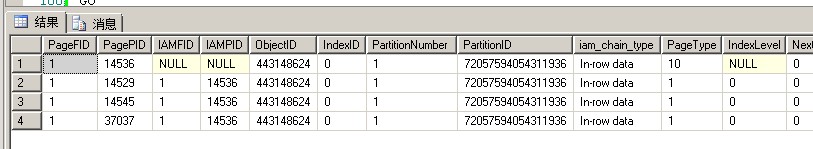

再看一下DBCC IND的结果

1 --先清空[DBCCResult]的数据
2 TRUNCATE TABLE [dbo].[DBCCResult]
3 INSERT INTO DBCCResult EXEC ('DBCC IND(pratice,HeapTable,-1) ')
4
5 SELECT * FROM [dbo].[DBCCResult] ORDER BY [PageType] DESC

看一下数据页14529里的数据  id从1~13  其中字段m_slotCnt = 7 表示本页面存储了7条记录

  1 PAGE: (1:14529)
  2
  3
  4 BUFFER:
  5
  6
  7 BUF @0x03F83188
  8
  9 bpage = 0x1A516000                   bhash = 0x00000000                   bpageno = (1:14529)
 10 bdbid = 5                            breferences = 0                      bUse1 = 13252
 11 bstat = 0x2c0000b                    blog = 0x2159bbbb                    bnext = 0x00000000
 12
 13 PAGE HEADER:
 14
 15
 16 Page @0x1A516000
 17
 18 m_pageId = (1:14529)                 m_headerVersion = 1                  m_type = 1
 19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0x8000
 20 m_objId (AllocUnitId.idObj) = 391    m_indexId (AllocUnitId.idInd) = 256
 21 Metadata: AllocUnitId = 72057594063552512
 22 Metadata: PartitionId = 72057594054311936                                 Metadata: IndexId = 0
 23 Metadata: ObjectId = 443148624       m_prevPage = (0:0)                   m_nextPage = (0:0)
 24 pminlen = 1007                       m_slotCnt = 7                        m_freeCnt = 1012
 25 m_freeData = 7166                    m_reservedCnt = 0                    m_lsn = (2773:486:2)
 26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
 27 m_tornBits = 0
 28
 29 Allocation Status
 30
 31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
 32 PFS (1:8088) = 0x63 MIXED_EXT ALLOCATED  95_PCT_FULL                      DIFF (1:6) = CHANGED
 33 ML (1:7) = NOT MIN_LOGGED
 34
 35 Slot 0 Offset 0x60 Length 1010
 36
 37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 38 Memory Dump @0x095CC060
 39
 40
 41
 42 Slot 0 Column 0 Offset 0x4 Length 4
 43
 44 id = 1
 45
 46 Slot 0 Column 1 Offset 0x8 Length 999
 47
 48 col2 = xxx
 49
 50 col3 = [NULL]
 51
 52 Slot 1 Offset 0x452 Length 1010
 53
 54 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 55 Memory Dump @0x095CC452
 56
 57
 58
 59 Slot 1 Column 0 Offset 0x4 Length 4
 60
 61 id = 3
 62
 63 Slot 1 Column 1 Offset 0x8 Length 999
 64
 65 col2 = xxx
 66
 67 col3 = [NULL]
 68
 69 Slot 2 Offset 0x844 Length 1010
 70
 71 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 72 Memory Dump @0x095CC844
 73
 74
 75 Slot 2 Column 0 Offset 0x4 Length 4
 76
 77 id = 5
 78
 79 Slot 2 Column 1 Offset 0x8 Length 999
 80
 81 col2 = xxx
 82
 83 col3 = [NULL]
 84
 85 Slot 3 Offset 0xc36 Length 1010
 86
 87 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 88 Memory Dump @0x095CCC36
 89
 90
 91
 92 Slot 3 Column 0 Offset 0x4 Length 4
 93
 94 id = 7
 95
 96 Slot 3 Column 1 Offset 0x8 Length 999
 97
 98 col2 = xxx
 99
100 col3 = [NULL]
101
102 Slot 4 Offset 0x1028 Length 1010
103
104 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
105 Memory Dump @0x095CD028
106
107
108
109 Slot 4 Column 0 Offset 0x4 Length 4
110
111 id = 9
112
113 Slot 4 Column 1 Offset 0x8 Length 999
114
115 col2 = xxx
116
117 col3 = [NULL]
118
119 Slot 5 Offset 0x141a Length 1010
120
121 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
122 Memory Dump @0x095CD41A
123
124
125
126 Slot 5 Column 0 Offset 0x4 Length 4
127
128 id = 11
129
130 Slot 5 Column 1 Offset 0x8 Length 999
131
132 col2 = xxx
133
134 col3 = [NULL]
135
136 Slot 6 Offset 0x180c Length 1010
137
138 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
139 Memory Dump @0x095CD80C
140
141
142
143 Slot 6 Column 0 Offset 0x4 Length 4
144
145 id = 13
146
147 Slot 6 Column 1 Offset 0x8 Length 999
148
149 col2 = xxx
150
151 col3 = [NULL]
152
153
154 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code

看一下数据页14545里的数据  id从15~27   其中字段m_slotCnt = 7 表示本页面存储了7条记录

  1 PAGE: (1:14545)
  2
  3
  4 BUFFER:
  5
  6
  7 BUF @0x03F5782C
  8
  9 bpage = 0x1910A000                   bhash = 0x00000000                   bpageno = (1:14545)
 10 bdbid = 5                            breferences = 0                      bUse1 = 13392
 11 bstat = 0x2c0000b                    blog = 0x32159bb                     bnext = 0x00000000
 12
 13 PAGE HEADER:
 14
 15
 16 Page @0x1910A000
 17
 18 m_pageId = (1:14545)                 m_headerVersion = 1                  m_type = 1
 19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0x8000
 20 m_objId (AllocUnitId.idObj) = 391    m_indexId (AllocUnitId.idInd) = 256
 21 Metadata: AllocUnitId = 72057594063552512
 22 Metadata: PartitionId = 72057594054311936                                 Metadata: IndexId = 0
 23 Metadata: ObjectId = 443148624       m_prevPage = (0:0)                   m_nextPage = (0:0)
 24 pminlen = 1007                       m_slotCnt = 7                        m_freeCnt = 1012
 25 m_freeData = 7166                    m_reservedCnt = 0                    m_lsn = (2774:28:2)
 26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
 27 m_tornBits = 0
 28
 29 Allocation Status
 30
 31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
 32 PFS (1:8088) = 0x63 MIXED_EXT ALLOCATED  95_PCT_FULL                      DIFF (1:6) = CHANGED
 33 ML (1:7) = NOT MIN_LOGGED
 34
 35 Slot 0 Offset 0x60 Length 1010
 36
 37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 38 Memory Dump @0x0A33C060
 39
 40
 41
 42 Slot 0 Column 0 Offset 0x4 Length 4
 43
 44 id = 15
 45
 46 Slot 0 Column 1 Offset 0x8 Length 999
 47
 48 col2 = xxx
 49
 50 col3 = [NULL]
 51
 52 Slot 1 Offset 0x452 Length 1010
 53
 54 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 55 Memory Dump @0x0A33C452
 56
 57
 58
 59 Slot 1 Column 0 Offset 0x4 Length 4
 60
 61 id = 17
 62
 63 Slot 1 Column 1 Offset 0x8 Length 999
 64
 65 col2 = xxx
 66
 67 col3 = [NULL]
 68
 69 Slot 2 Offset 0x844 Length 1010
 70
 71 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 72 Memory Dump @0x0A33C844
 73
 74
 75
 76 Slot 2 Column 0 Offset 0x4 Length 4
 77
 78 id = 19
 79
 80 Slot 2 Column 1 Offset 0x8 Length 999
 81
 82 col2 = xxx
 83
 84 col3 = [NULL]
 85
 86 Slot 3 Offset 0xc36 Length 1010
 87
 88 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 89 Memory Dump @0x0A33CC36
 90
 91
 92
 93 Slot 3 Column 0 Offset 0x4 Length 4
 94
 95 id = 21
 96
 97 Slot 3 Column 1 Offset 0x8 Length 999
 98
 99 col2 = xxx
100
101 col3 = [NULL]
102
103 Slot 4 Offset 0x1028 Length 1010
104
105 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
106 Memory Dump @0x0A33D028
107
108
109
110 Slot 4 Column 0 Offset 0x4 Length 4
111
112 id = 23
113
114 Slot 4 Column 1 Offset 0x8 Length 999
115
116 col2 = xxx
117
118 col3 = [NULL]
119
120 Slot 5 Offset 0x141a Length 1010
121
122 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
123 Memory Dump @0x0A33D41A
124
125
126 Slot 5 Column 0 Offset 0x4 Length 4
127
128 id = 25
129
130 Slot 5 Column 1 Offset 0x8 Length 999
131
132 col2 = xxx
133
134 col3 = [NULL]
135
136 Slot 6 Offset 0x180c Length 1010
137
138 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
139 Memory Dump @0x0A33D80C
140
141
142 Slot 6 Column 0 Offset 0x4 Length 4
143
144 id = 27
145
146 Slot 6 Column 1 Offset 0x8 Length 999
147
148 col2 = xxx
149
150 col3 = [NULL]
151
152
153 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code

看一下数据页37037里的数据  只有id为29 和31这两条记录  其中字段m_slotCnt = 2 表示本页面存储了2条记录

 1 PAGE: (1:37037)
 2
 3
 4 BUFFER:
 5
 6
 7 BUF @0x03F83ABC
 8
 9 bpage = 0x1A4E8000                   bhash = 0x00000000                   bpageno = (1:37037)
10 bdbid = 5                            breferences = 0                      bUse1 = 13476
11 bstat = 0x2c0000b                    blog = 0x212121bb                    bnext = 0x00000000
12
13 PAGE HEADER:
14
15
16 Page @0x1A4E8000
17
18 m_pageId = (1:37037)                 m_headerVersion = 1                  m_type = 1
19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0x8000
20 m_objId (AllocUnitId.idObj) = 391    m_indexId (AllocUnitId.idInd) = 256
21 Metadata: AllocUnitId = 72057594063552512
22 Metadata: PartitionId = 72057594054311936                                 Metadata: IndexId = 0
23 Metadata: ObjectId = 443148624       m_prevPage = (0:0)                   m_nextPage = (0:0)
24 pminlen = 1007                       m_slotCnt = 2                        m_freeCnt = 6072
25 m_freeData = 2116                    m_reservedCnt = 0                    m_lsn = (2774:35:2)
26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
27 m_tornBits = 0
28
29 Allocation Status
30
31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
32 PFS (1:32352) = 0x61 MIXED_EXT ALLOCATED  50_PCT_FULL                     DIFF (1:6) = CHANGED
33 ML (1:7) = NOT MIN_LOGGED
34
35 Slot 0 Offset 0x60 Length 1010
36
37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
38 Memory Dump @0x0A33C060
39
40
41
42 Slot 0 Column 0 Offset 0x4 Length 4
43
44 id = 29
45
46 Slot 0 Column 1 Offset 0x8 Length 999
47
48 col2 = xxx
49
50 col3 = [NULL]
51
52 Slot 1 Offset 0x452 Length 1010
53
54 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
55 Memory Dump @0x0A33C452
56
57
58
59 Slot 1 Column 0 Offset 0x4 Length 4
60
61 id = 31
62
63 Slot 1 Column 1 Offset 0x8 Length 999
64
65 col2 = xxx
66
67 col3 = [NULL]
68
69
70 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code

 ------------------------------------------------华丽的分割线------------------------------------------------------------

现在向聚集索引表ClusteredTable插入一条记录,插入id为30的记录

1 INSERT INTO [dbo].[ClusteredTable] ( [id], [col2], [col3] )
2 SELECT 30,'xxx',''



1 --清空DBCCResult表数据
2 TRUNCATE TABLE [dbo].[DBCCResult]
3 INSERT INTO DBCCResult EXEC ('DBCC IND(pratice,ClusteredTable,-1) ')
4
5 SELECT * FROM [dbo].[DBCCResult] ORDER BY [PageType] DESC

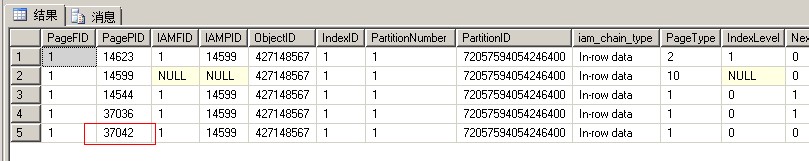

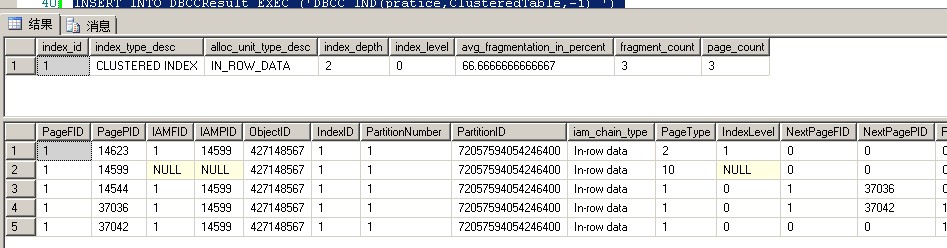

可以看到新增加了一页37042

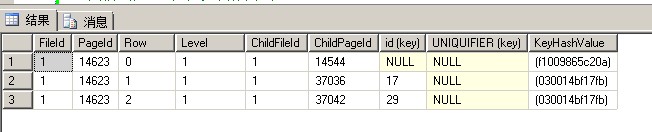

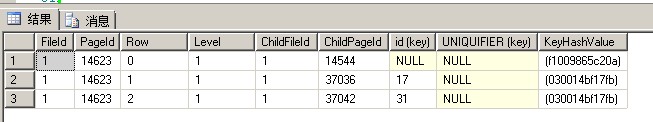

我们看一下聚集索引页14623

可以看到聚集索引页增加了一行

我们看一下37036页 ,可以看到该页本身存放8条记录,现在存放6条记录   m_slotCnt = 6

  1 PAGE: (1:37036)
  2
  3
  4 BUFFER:
  5
  6
  7 BUF @0x03F6F5F4
  8
  9 bpage = 0x19CD0000                   bhash = 0x00000000                   bpageno = (1:37036)
 10 bdbid = 5                            breferences = 0                      bUse1 = 14314
 11 bstat = 0x2c0000b                    blog = 0x212121bb                    bnext = 0x00000000
 12
 13 PAGE HEADER:
 14
 15
 16 Page @0x19CD0000
 17
 18 m_pageId = (1:37036)                 m_headerVersion = 1                  m_type = 1
 19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0x0
 20 m_objId (AllocUnitId.idObj) = 390    m_indexId (AllocUnitId.idInd) = 256
 21 Metadata: AllocUnitId = 72057594063486976
 22 Metadata: PartitionId = 72057594054246400                                 Metadata: IndexId = 1
 23 Metadata: ObjectId = 427148567       m_prevPage = (1:14544)               m_nextPage = (1:37042)
 24 pminlen = 1007                       m_slotCnt = 6                        m_freeCnt = 2024
 25 m_freeData = 8176                    m_reservedCnt = 0                    m_lsn = (2774:96:9)
 26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
 27 m_tornBits = 0
 28
 29 Allocation Status
 30
 31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
 32 PFS (1:32352) = 0x60 MIXED_EXT ALLOCATED   0_PCT_FULL                     DIFF (1:6) = CHANGED
 33 ML (1:7) = NOT MIN_LOGGED
 34
 35 Slot 0 Offset 0x60 Length 1010
 36
 37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 38 Memory Dump @0x095CC060
 39
 40
 41 UNIQUIFIER = [NULL]
 42
 43 Slot 0 Column 1 Offset 0x4 Length 4
 44
 45 id = 17
 46
 47 Slot 0 Column 2 Offset 0x8 Length 999
 48
 49 col2 = xxx
 50
 51 col3 = [NULL]
 52
 53 Slot 1 Offset 0x452 Length 1010
 54
 55 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 56 Memory Dump @0x095CC452
 57
 58
 59 UNIQUIFIER = [NULL]
 60
 61 Slot 1 Column 1 Offset 0x4 Length 4
 62
 63 id = 19
 64
 65 Slot 1 Column 2 Offset 0x8 Length 999
 66
 67 col2 = xxx
 68
 69 col3 = [NULL]
 70
 71 Slot 2 Offset 0x844 Length 1010
 72
 73 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 74 Memory Dump @0x095CC844
 75
 76
 77 UNIQUIFIER = [NULL]
 78
 79 Slot 2 Column 1 Offset 0x4 Length 4
 80
 81 id = 21
 82
 83 Slot 2 Column 2 Offset 0x8 Length 999
 84
 85 col2 = xxx
 86
 87 col3 = [NULL]
 88
 89 Slot 3 Offset 0xc36 Length 1010
 90
 91 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 92 Memory Dump @0x095CCC36
 93
 94
 95 UNIQUIFIER = [NULL]
 96
 97 Slot 3 Column 1 Offset 0x4 Length 4
 98
 99 id = 23
100
101 Slot 3 Column 2 Offset 0x8 Length 999
102
103 col2 = xxx
104
105 col3 = [NULL]
106
107 Slot 4 Offset 0x1028 Length 1010
108
109 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
110 Memory Dump @0x095CD028
111
112
113 UNIQUIFIER = [NULL]
114
115 Slot 4 Column 1 Offset 0x4 Length 4
116
117 id = 25
118
119 Slot 4 Column 2 Offset 0x8 Length 999
120
121 col2 = xxx
122
123 col3 = [NULL]
124
125 Slot 5 Offset 0x141a Length 1010
126
127 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
128 Memory Dump @0x095CD41A
129
130 UNIQUIFIER = [NULL]
131
132 Slot 5 Column 1 Offset 0x4 Length 4
133
134 id = 27
135
136 Slot 5 Column 2 Offset 0x8 Length 999
137
138 col2 = xxx
139
140 col3 = [NULL]
141
142
143 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code

我们看一下37042页,可以看到m_slotCnt = 3 ,该页面只有3条记录

 1 PAGE: (1:37042)
 2
 3
 4 BUFFER:
 5
 6
 7 BUF @0x03F68738
 8
 9 bpage = 0x1997A000                   bhash = 0x00000000                   bpageno = (1:37042)
10 bdbid = 5                            breferences = 0                      bUse1 = 14543
11 bstat = 0x2c0000b                    blog = 0x21bbbbbb                    bnext = 0x00000000
12
13 PAGE HEADER:
14
15
16 Page @0x1997A000
17
18 m_pageId = (1:37042)                 m_headerVersion = 1                  m_type = 1
19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0x0
20 m_objId (AllocUnitId.idObj) = 390    m_indexId (AllocUnitId.idInd) = 256
21 Metadata: AllocUnitId = 72057594063486976
22 Metadata: PartitionId = 72057594054246400                                 Metadata: IndexId = 1
23 Metadata: ObjectId = 427148567       m_prevPage = (1:37036)               m_nextPage = (0:0)
24 pminlen = 1007                       m_slotCnt = 3                        m_freeCnt = 5060
25 m_freeData = 3126                    m_reservedCnt = 0                    m_lsn = (2774:96:12)
26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
27 m_tornBits = 0
28
29 Allocation Status
30
31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
32 PFS (1:32352) = 0x60 MIXED_EXT ALLOCATED   0_PCT_FULL                     DIFF (1:6) = CHANGED
33 ML (1:7) = NOT MIN_LOGGED
34
35 Slot 0 Offset 0x60 Length 1010
36
37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
38 Memory Dump @0x0A33C060
39
40
41 UNIQUIFIER = [NULL]
42
43 Slot 0 Column 1 Offset 0x4 Length 4
44
45 id = 29
46
47 Slot 0 Column 2 Offset 0x8 Length 999
48
49 col2 = xxx
50
51 col3 = [NULL]
52
53 Slot 1 Offset 0x844 Length 1010
54
55 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
56 Memory Dump @0x0A33C844
57
58
59 UNIQUIFIER = [NULL]
60
61 Slot 1 Column 1 Offset 0x4 Length 4
62
63 id = 30
64
65 Slot 1 Column 2 Offset 0x8 Length 999
66
67 col2 = xxx
68
69 col3 = [NULL]
70
71 Slot 2 Offset 0x452 Length 1010
72
73 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
74 Memory Dump @0x0A33C452
75
76
77 UNIQUIFIER = [NULL]
78
79 Slot 2 Column 1 Offset 0x4 Length 4
80
81 id = 31
82
83 Slot 2 Column 2 Offset 0x8 Length 999
84
85 col2 = xxx
86
87 col3 = [NULL]
88
89
90 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code

 原本一页可以容纳8条记录,现在37036页面只能容纳6条记录,造成还有2条记录的剩余空间没有利用,造成浪费

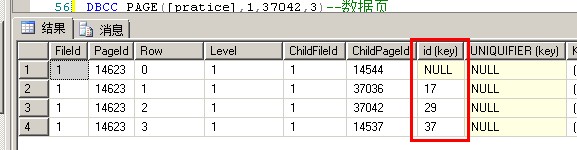

而且聚集索引页的主键列的id字段的范围值也打乱了,需要增加一行来保持索引键列的有序

其实这也属于页拆分的一种,详细可以看一下宋大侠的文章里面关于内部碎片和外部碎片的说法,这里就不讨论了

T-SQL查询高级—SQL Server索引中的碎片和填充因子

 ------------------------------------------------------------华丽的分割线-----------------------------------------------

 其实这里插入到聚集索引表里的记录是会维护数据页和索引页使得id字段保持有序

id为30这条记录还是插在了id为31的这条记录前面

这样的话,插入一条记录的同时需要维护索引页和数据页所以开销是比较大的

--------------------------------------------------华丽的分割线----------------------------------------------

那么堆表是怎样处理数据的插入的呢?

 现在向堆表[HeapTable]插入一条记录,插入id为26的记录

1 INSERT INTO [dbo].[HeapTable] ( [id], [col2], [col3] )
2 SELECT 26,'xxx',''



1 --先清空[DBCCResult]的数据
2 TRUNCATE TABLE [dbo].[DBCCResult]
3 INSERT INTO DBCCResult EXEC ('DBCC IND(pratice,HeapTable,-1) ')
4
5 SELECT * FROM [dbo].[DBCCResult] ORDER BY [PageType] DESC

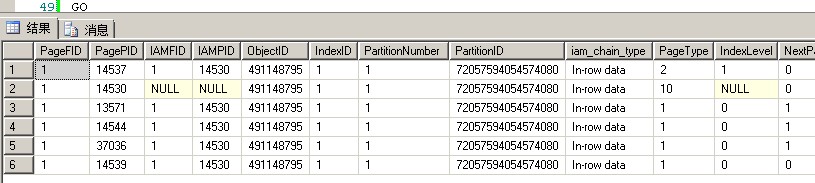

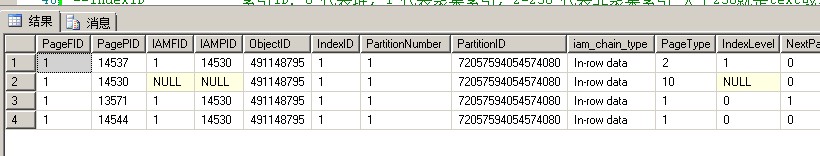

可以看到什么页面都没有增加

我们看一下数据页37037里的内容  可以看到m_slotCnt = 3  ,说明这个数据页比没有插入数据之前多了一条记录

 1 PAGE: (1:37037)
 2
 3
 4 BUFFER:
 5
 6
 7 BUF @0x03F83ABC
 8
 9 bpage = 0x1A4E8000                   bhash = 0x00000000                   bpageno = (1:37037)
10 bdbid = 5                            breferences = 0                      bUse1 = 15670
11 bstat = 0x2c0000b                    blog = 0x212121bb                    bnext = 0x00000000
12
13 PAGE HEADER:
14
15
16 Page @0x1A4E8000
17
18 m_pageId = (1:37037)                 m_headerVersion = 1                  m_type = 1
19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0x8000
20 m_objId (AllocUnitId.idObj) = 391    m_indexId (AllocUnitId.idInd) = 256
21 Metadata: AllocUnitId = 72057594063552512
22 Metadata: PartitionId = 72057594054311936                                 Metadata: IndexId = 0
23 Metadata: ObjectId = 443148624       m_prevPage = (0:0)                   m_nextPage = (0:0)
24 pminlen = 1007                       m_slotCnt = 3                        m_freeCnt = 5060
25 m_freeData = 3126                    m_reservedCnt = 0                    m_lsn = (2774:121:2)
26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
27 m_tornBits = 0
28
29 Allocation Status
30
31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
32 PFS (1:32352) = 0x61 MIXED_EXT ALLOCATED  50_PCT_FULL                     DIFF (1:6) = CHANGED
33 ML (1:7) = NOT MIN_LOGGED
34
35 Slot 0 Offset 0x60 Length 1010
36
37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
38 Memory Dump @0x0A33C060
39
40
41
42 Slot 0 Column 0 Offset 0x4 Length 4
43
44 id = 29
45
46 Slot 0 Column 1 Offset 0x8 Length 999
47
48 col2 = xxx
49
50 col3 = [NULL]
51
52 Slot 1 Offset 0x452 Length 1010
53
54 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
55 Memory Dump @0x0A33C452
56
57
58
59 Slot 1 Column 0 Offset 0x4 Length 4
60
61 id = 31
62
63 Slot 1 Column 1 Offset 0x8 Length 999
64
65 col2 = xxx
66
67
68 col3 = [NULL]
69
70 Slot 2 Offset 0x844 Length 1010
71
72 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
73 Memory Dump @0x0A33C844
74
75
76
77 Slot 2 Column 0 Offset 0x4 Length 4
78
79 id = 26
80
81 Slot 2 Column 1 Offset 0x8 Length 999
82
83 col2 = xxx
84
85
86 col3 = [NULL]
87
88
89 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code

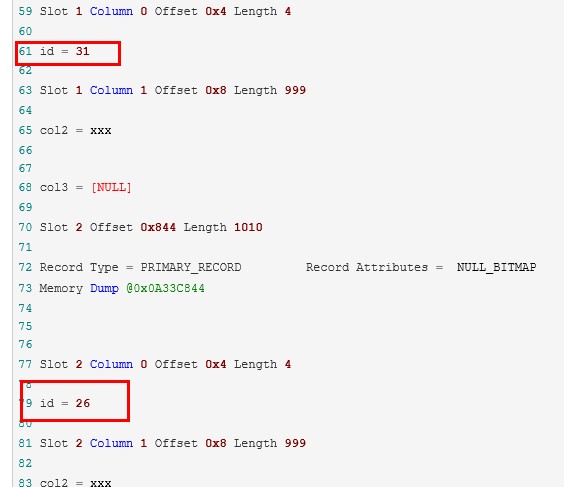

 按道理,如果按照id字段的顺序插入记录的话,id为26的这条记录应该插入到数据页14545 里id为25的那条记录的后面,但是堆表的结果并非这样

他插入到了数据页37037的id为31的那条记录的后面

 这说明堆表的记录插入只会插入到堆中的最后一个数据页里的最后,所以插入数据基本上没有开销

-------------------------------------------------华丽的分割线---------------------------------------------

而园子里有人针对聚集索引表作出下面讨论:

插入是会分配新的page,而不是在原来的有碎片的page里面插入数据
只有说经常更新行打小不固定的表的时候,碎片空隙保持一定的冗余,防止页拆分Shiite有一定好处的
不过我不认同您对数据插入一定会分配新的页的说法,当页内空间足够是不用分配新的页的。如果每插入一条数据分配一个新的页。

那岂不是一个100W行的表会有100W页?那SQL Server可以退出历史舞台了.....

 可以看到刚才我在聚集索引表里插入id为30的那条记录,结果造成分配了一个新的page,为什麽??因为原本只能容纳8条记录的页面

不能再容纳新的记录了,只能够分配一个新的page,分配的时候也造成了页拆分

而插入是不是一定会分配新的page呢?

证明:证明的方法很简单,只需要在数据页37042里再插入一条记录,看会不会分配新的page就可以了

数据页37042现在有3条记录,id分别为29,30,31

现在插入id为32这条记录

1 INSERT INTO [dbo].[ClusteredTable] ( [id], [col2], [col3] )
2 SELECT 32,'xxx',''



 1 SELECT  [index_id], [index_type_desc], [alloc_unit_type_desc], [index_depth],
 2         [index_level], [avg_fragmentation_in_percent], [fragment_count],
 3         [page_count]
 4 FROM    [sys].[dm_db_index_physical_stats](DB_ID('pratice'),
 5                                            OBJECT_ID('pratice.dbo.ClusteredTable'),
 6                                            NULL, NULL, NULL)
 7
 8
 9 --先清空[DBCCResult]表的数据
10 TRUNCATE TABLE [dbo].[DBCCResult]
11 INSERT INTO DBCCResult EXEC ('DBCC IND(pratice,ClusteredTable,-1) ')
12
13 SELECT * FROM [dbo].[DBCCResult] ORDER BY [PageType] DESC

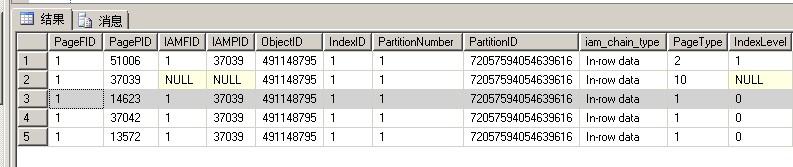

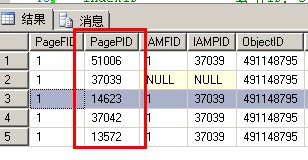

看一下数据页37042这个页面   m_slotCnt = 4 说明37042这个页面有4条记录

  1 PAGE: (1:37042)
  2
  3
  4 BUFFER:
  5
  6
  7 BUF @0x03F68738
  8
  9 bpage = 0x1997A000                   bhash = 0x00000000                   bpageno = (1:37042)
 10 bdbid = 5                            breferences = 0                      bUse1 = 16744
 11 bstat = 0x2c0000b                    blog = 0x21bbbbbb                    bnext = 0x00000000
 12
 13 PAGE HEADER:
 14
 15
 16 Page @0x1997A000
 17
 18 m_pageId = (1:37042)                 m_headerVersion = 1                  m_type = 1
 19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0x8000
 20 m_objId (AllocUnitId.idObj) = 390    m_indexId (AllocUnitId.idInd) = 256
 21 Metadata: AllocUnitId = 72057594063486976
 22 Metadata: PartitionId = 72057594054246400                                 Metadata: IndexId = 1
 23 Metadata: ObjectId = 427148567       m_prevPage = (1:37036)               m_nextPage = (0:0)
 24 pminlen = 1007                       m_slotCnt = 4                        m_freeCnt = 4048
 25 m_freeData = 4136                    m_reservedCnt = 0                    m_lsn = (2774:138:2)
 26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
 27 m_tornBits = 0
 28
 29 Allocation Status
 30
 31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
 32 PFS (1:32352) = 0x60 MIXED_EXT ALLOCATED   0_PCT_FULL                     DIFF (1:6) = CHANGED
 33 ML (1:7) = NOT MIN_LOGGED
 34
 35 Slot 0 Offset 0x60 Length 1010
 36
 37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 38 Memory Dump @0x0A33C060
 39
 40
 41 UNIQUIFIER = [NULL]
 42
 43 Slot 0 Column 1 Offset 0x4 Length 4
 44
 45 id = 29
 46
 47 Slot 0 Column 2 Offset 0x8 Length 999
 48
 49 col2 = xxx
 50
 51 col3 = [NULL]
 52
 53 Slot 1 Offset 0x844 Length 1010
 54
 55 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 56 Memory Dump @0x0A33C844
 57
 58
 59 UNIQUIFIER = [NULL]
 60
 61 Slot 1 Column 1 Offset 0x4 Length 4
 62
 63 id = 30
 64
 65 Slot 1 Column 2 Offset 0x8 Length 999
 66
 67 col2 = xxx
 68
 69
 70 col3 = [NULL]
 71
 72 Slot 2 Offset 0x452 Length 1010
 73
 74 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 75 Memory Dump @0x0A33C452
 76
 77
 78 UNIQUIFIER = [NULL]
 79
 80 Slot 2 Column 1 Offset 0x4 Length 4
 81
 82 id = 31
 83
 84 Slot 2 Column 2 Offset 0x8 Length 999
 85
 86 col2 = xxx
 87
 88 col3 = [NULL]
 89
 90 Slot 3 Offset 0xc36 Length 1010
 91
 92 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 93 Memory Dump @0x0A33CC36
 94
 95
 96 UNIQUIFIER = [NULL]
 97
 98 Slot 3 Column 1 Offset 0x4 Length 4
 99
100 id = 32
101
102 Slot 3 Column 2 Offset 0x8 Length 999
103
104 col2 = xxx
105
106 col3 = [NULL]
107
108
109 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code

现在我们插入6条记录,让数据超过数据页面本身的承载能力,让他分配新的数据页

1 INSERT INTO [dbo].[ClusteredTable] ( [id], [col2], [col3] )
2 SELECT 33,'xxx','' UNION ALL
3 SELECT 34,'xxx','' UNION ALL
4 SELECT 35,'xxx','' UNION ALL
5 SELECT 36,'xxx','' UNION ALL
6 SELECT 37,'xxx',''

聚集索引页面


从上面两张图可以看到,分配了一个新的数据页14537,因为数据页37042已经超过8条记录了,所以必须要分配一个新的数据页,同时聚集索引页也会增加一条记录

数据页14537的内容,m_slotCnt = 1  只有一条记录

 1 PAGE: (1:14537)
 2
 3
 4 BUFFER:
 5
 6
 7 BUF @0x03F79EE0
 8
 9 bpage = 0x1A16E000                   bhash = 0x00000000                   bpageno = (1:14537)
10 bdbid = 5                            breferences = 0                      bUse1 = 17088
11 bstat = 0x2c0000b                    blog = 0x159bbbbb                    bnext = 0x00000000
12
13 PAGE HEADER:
14
15
16 Page @0x1A16E000
17
18 m_pageId = (1:14537)                 m_headerVersion = 1                  m_type = 1
19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0xc000
20 m_objId (AllocUnitId.idObj) = 390    m_indexId (AllocUnitId.idInd) = 256
21 Metadata: AllocUnitId = 72057594063486976
22 Metadata: PartitionId = 72057594054246400                                 Metadata: IndexId = 1
23 Metadata: ObjectId = 427148567       m_prevPage = (1:37042)               m_nextPage = (0:0)
24 pminlen = 1007                       m_slotCnt = 1                        m_freeCnt = 7084
25 m_freeData = 1106                    m_reservedCnt = 0                    m_lsn = (2774:212:10)
26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
27 m_tornBits = 0
28
29 Allocation Status
30
31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
32 PFS (1:8088) = 0x60 MIXED_EXT ALLOCATED   0_PCT_FULL                      DIFF (1:6) = CHANGED
33 ML (1:7) = NOT MIN_LOGGED
34
35 Slot 0 Offset 0x60 Length 1010
36
37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
38 Memory Dump @0x095CC060
39
40
41 UNIQUIFIER = [NULL]
42
43 Slot 0 Column 1 Offset 0x4 Length 4
44
45 id = 37
46
47 Slot 0 Column 2 Offset 0x8 Length 999
48
49 col2 = xxx
50
51 col3 = [NULL]
52
53
54 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code

 堆表跟聚集索引表一样,当数据页面不能承载页面本身的数据量的时候就会分配一个新的数据页,由于篇幅关系,这里就不测试了

-----------------------------------------------------华丽的分割线------------------------------------------------------------

 那么重组索引/重建索引对于上面解决那个页拆分有没有帮助呢? 对于数据页37036,页面数据还没有填满的情况

 我们先使用重组索引

其实对于数据页37036的情况,我们也可以理解为在数据页37036里删除了两条记录,使得数据页37036里的记录数不足8条

很多书本上说,如果表空间还剩下很多的话,最好在表上建立一个聚集索引,然后重组索引,重组索引之后一些数据页面剩余的页面空间

就可以利用起来

先重组一下索引

1 USE [pratice]
2 GO
3 ALTER INDEX [CIX] ON ClusteredTable REORGANIZE

我们看一下重组索引之后,数据页和聚集索引页面变成什么样子了???

1 --先清空[DBCCResult]表的数据
2 TRUNCATE TABLE [dbo].[DBCCResult]
3 INSERT INTO DBCCResult EXEC ('DBCC IND(pratice,ClusteredTable,-1) ')
4
5 SELECT * FROM [dbo].[DBCCResult] ORDER BY [PageType] DESC

聚集索引页面

 可以看到数据页14537这个页面不见了,聚集索引页的索引键列(id)的范围值重新排序了

因为刚才在数据页37036里遭遇了页拆分,所以这里只需要查看数据页37036和数据页37042里的内容就可以了

数据页37036,可以看到 m_slotCnt = 8   ,数据页37036里的记录又填充满了,id的范围从17~30

  1 PAGE: (1:37036)
  2
  3
  4 BUFFER:
  5
  6
  7 BUF @0x03F6F5F4
  8
  9 bpage = 0x19CD0000                   bhash = 0x00000000                   bpageno = (1:37036)
 10 bdbid = 5                            breferences = 0                      bUse1 = 18572
 11 bstat = 0x2c0000b                    blog = 0x212121bb                    bnext = 0x00000000
 12
 13 PAGE HEADER:
 14
 15
 16 Page @0x19CD0000
 17
 18 m_pageId = (1:37036)                 m_headerVersion = 1                  m_type = 1
 19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0x8000
 20 m_objId (AllocUnitId.idObj) = 390    m_indexId (AllocUnitId.idInd) = 256
 21 Metadata: AllocUnitId = 72057594063486976
 22 Metadata: PartitionId = 72057594054246400                                 Metadata: IndexId = 1
 23 Metadata: ObjectId = 427148567       m_prevPage = (1:14544)               m_nextPage = (1:37042)
 24 pminlen = 1007                       m_slotCnt = 8                        m_freeCnt = 0
 25 m_freeData = 8176                    m_reservedCnt = 0                    m_lsn = (2774:232:3)
 26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
 27 m_tornBits = 0
 28
 29 Allocation Status
 30
 31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
 32 PFS (1:32352) = 0x60 MIXED_EXT ALLOCATED   0_PCT_FULL                     DIFF (1:6) = CHANGED
 33 ML (1:7) = NOT MIN_LOGGED
 34
 35 Slot 0 Offset 0x60 Length 1010
 36
 37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 38 Memory Dump @0x095CC060
 39
 40
 41 UNIQUIFIER = [NULL]
 42
 43 Slot 0 Column 1 Offset 0x4 Length 4
 44
 45 id = 17
 46
 47 Slot 0 Column 2 Offset 0x8 Length 999
 48
 49 col2 = xxx
 50
 51 col3 = [NULL]
 52
 53 Slot 1 Offset 0x452 Length 1010
 54
 55 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 56 Memory Dump @0x095CC452
 57
 58
 59 UNIQUIFIER = [NULL]
 60
 61 Slot 1 Column 1 Offset 0x4 Length 4
 62
 63 id = 19
 64
 65 Slot 1 Column 2 Offset 0x8 Length 999
 66
 67 col2 = xxx
 68
 69 col3 = [NULL]
 70
 71 Slot 2 Offset 0x844 Length 1010
 72
 73 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 74 Memory Dump @0x095CC844
 75
 76
 77 UNIQUIFIER = [NULL]
 78
 79 Slot 2 Column 1 Offset 0x4 Length 4
 80
 81 id = 21
 82
 83 Slot 2 Column 2 Offset 0x8 Length 999
 84
 85 col2 = xxx
 86
 87 col3 = [NULL]
 88
 89 Slot 3 Offset 0xc36 Length 1010
 90
 91 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 92 Memory Dump @0x095CCC36
 93
 94
 95 UNIQUIFIER = [NULL]
 96
 97 Slot 3 Column 1 Offset 0x4 Length 4
 98
 99 id = 23
100
101 Slot 3 Column 2 Offset 0x8 Length 999
102
103 col2 = xxx
104
105 col3 = [NULL]
106
107 Slot 4 Offset 0x1028 Length 1010
108
109 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
110 Memory Dump @0x095CD028
111
112
113 UNIQUIFIER = [NULL]
114
115 Slot 4 Column 1 Offset 0x4 Length 4
116
117 id = 25
118
119 Slot 4 Column 2 Offset 0x8 Length 999
120
121 col2 = xxx
122
123 col3 = [NULL]
124
125 Slot 5 Offset 0x141a Length 1010
126
127 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
128 Memory Dump @0x095CD41A
129
130
131 UNIQUIFIER = [NULL]
132
133 Slot 5 Column 1 Offset 0x4 Length 4
134
135 id = 27
136
137 Slot 5 Column 2 Offset 0x8 Length 999
138
139 col2 = xxx
140
141 col3 = [NULL]
142
143 Slot 6 Offset 0x180c Length 1010
144
145 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
146 Memory Dump @0x095CD80C
147
148
149 UNIQUIFIER = [NULL]
150
151 Slot 6 Column 1 Offset 0x4 Length 4
152
153 id = 29
154
155 Slot 6 Column 2 Offset 0x8 Length 999
156
157 col2 = xxx
158
159 col3 = [NULL]
160
161 Slot 7 Offset 0x1bfe Length 1010
162
163 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
164 Memory Dump @0x095CDBFE
165
166
167 UNIQUIFIER = [NULL]
168
169 Slot 7 Column 1 Offset 0x4 Length 4
170
171 id = 30
172
173 Slot 7 Column 2 Offset 0x8 Length 999
174
175 col2 = xxx
176
177 col3 = [NULL]
178
179
180 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code



数据页37042,可以看到 m_slotCnt = 7,id的范围从31~37

  1 PAGE: (1:37042)
  2
  3
  4 BUFFER:
  5
  6
  7 BUF @0x03F68738
  8
  9 bpage = 0x1997A000                   bhash = 0x00000000                   bpageno = (1:37042)
 10 bdbid = 5                            breferences = 0                      bUse1 = 18756
 11 bstat = 0x2c0000b                    blog = 0x21bbbbbb                    bnext = 0x00000000
 12
 13 PAGE HEADER:
 14
 15
 16 Page @0x1997A000
 17
 18 m_pageId = (1:37042)                 m_headerVersion = 1                  m_type = 1
 19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0x8000
 20 m_objId (AllocUnitId.idObj) = 390    m_indexId (AllocUnitId.idInd) = 256
 21 Metadata: AllocUnitId = 72057594063486976
 22 Metadata: PartitionId = 72057594054246400                                 Metadata: IndexId = 1
 23 Metadata: ObjectId = 427148567       m_prevPage = (1:37036)               m_nextPage = (0:0)
 24 pminlen = 1007                       m_slotCnt = 7                        m_freeCnt = 1012
 25 m_freeData = 7166                    m_reservedCnt = 0                    m_lsn = (2774:232:12)
 26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
 27 m_tornBits = 0
 28
 29 Allocation Status
 30
 31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
 32 PFS (1:32352) = 0x60 MIXED_EXT ALLOCATED   0_PCT_FULL                     DIFF (1:6) = CHANGED
 33 ML (1:7) = NOT MIN_LOGGED
 34
 35 Slot 0 Offset 0x60 Length 1010
 36
 37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 38 Memory Dump @0x095CC060
 39
 40
 41 UNIQUIFIER = [NULL]
 42
 43 Slot 0 Column 1 Offset 0x4 Length 4
 44
 45 id = 31
 46
 47 Slot 0 Column 2 Offset 0x8 Length 999
 48
 49 col2 = xxx
 50
 51 col3 = [NULL]
 52
 53 Slot 1 Offset 0x452 Length 1010
 54
 55 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 56 Memory Dump @0x095CC452
 57
 58
 59 UNIQUIFIER = [NULL]
 60
 61 Slot 1 Column 1 Offset 0x4 Length 4
 62
 63 id = 32
 64
 65 Slot 1 Column 2 Offset 0x8 Length 999
 66
 67 col2 = xxx
 68
 69 col3 = [NULL]
 70
 71 Slot 2 Offset 0x844 Length 1010
 72
 73 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 74 Memory Dump @0x095CC844
 75
 76
 77 UNIQUIFIER = [NULL]
 78
 79 Slot 2 Column 1 Offset 0x4 Length 4
 80
 81 id = 33
 82
 83 Slot 2 Column 2 Offset 0x8 Length 999
 84
 85 col2 = xxx
 86
 87 col3 = [NULL]
 88
 89 Slot 3 Offset 0xc36 Length 1010
 90
 91 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 92 Memory Dump @0x095CCC36
 93
 94
 95 UNIQUIFIER = [NULL]
 96
 97 Slot 3 Column 1 Offset 0x4 Length 4
 98
 99 id = 34
100
101 Slot 3 Column 2 Offset 0x8 Length 999
102
103 col2 = xxx
104
105 col3 = [NULL]
106
107 Slot 4 Offset 0x1028 Length 1010
108
109 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
110 Memory Dump @0x095CD028
111
112
113 UNIQUIFIER = [NULL]
114
115 Slot 4 Column 1 Offset 0x4 Length 4
116
117 id = 35
118
119 Slot 4 Column 2 Offset 0x8 Length 999
120
121 col2 = xxx
122
123 col3 = [NULL]
124
125 Slot 5 Offset 0x141a Length 1010
126
127 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
128 Memory Dump @0x095CD41A
129
130
131 UNIQUIFIER = [NULL]
132
133 Slot 5 Column 1 Offset 0x4 Length 4
134
135 id = 36
136
137 Slot 5 Column 2 Offset 0x8 Length 999
138
139 col2 = xxx
140
141 col3 = [NULL]
142
143 Slot 6 Offset 0x180c Length 1010
144
145 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
146 Memory Dump @0x095CD80C
147
148
149 UNIQUIFIER = [NULL]
150
151 Slot 6 Column 1 Offset 0x4 Length 4
152
153 id = 37
154
155 Slot 6 Column 2 Offset 0x8 Length 999
156
157 col2 = xxx
158
159 col3 = [NULL]
160
161
162 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code


重组索引之后无论是数据页还是索引页,里面的数据都按照id列的顺序填充满并排好序了

那么“重组索引之后一些数据页面剩余的页面空间就可以利用起来”是真的

------------------------------------------------------------华丽的分割线--------------------------------------------------------

那么重建索引呢??跟重组索引有什么区别??

 先drop掉ClusteredTable表,然后又创建ClusteredTable表,插入数据,建表和建索引的步骤跟文章开头一样,这里就不写了

按照前面的做法,令第二个数据页面只剩下两条记录没有填满,这里由于篇幅关系就不写了,文章开头都有步骤

下面这幅图是我插入了id为30的记录之后,ClusteredTable表中存在的索引页和数据页,可以看到增加了一个数据页37036

可以看到数据页37036里的内容, m_slotCnt = 3   记录有3条,id分别为:29,30,31

 1 PAGE: (1:37036)
 2
 3
 4 BUFFER:
 5
 6
 7 BUF @0x03F6F5F4
 8
 9 bpage = 0x19CD0000                   bhash = 0x00000000                   bpageno = (1:37036)
10 bdbid = 5                            breferences = 0                      bUse1 = 19590
11 bstat = 0x2c0000b                    blog = 0x21bbbbbb                    bnext = 0x00000000
12
13 PAGE HEADER:
14
15
16 Page @0x19CD0000
17
18 m_pageId = (1:37036)                 m_headerVersion = 1                  m_type = 1
19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0x0
20 m_objId (AllocUnitId.idObj) = 395    m_indexId (AllocUnitId.idInd) = 256
21 Metadata: AllocUnitId = 72057594063814656
22 Metadata: PartitionId = 72057594054574080                                 Metadata: IndexId = 1
23 Metadata: ObjectId = 491148795       m_prevPage = (1:14544)               m_nextPage = (0:0)
24 pminlen = 1007                       m_slotCnt = 3                        m_freeCnt = 5060
25 m_freeData = 3126                    m_reservedCnt = 0                    m_lsn = (2775:67:32)
26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
27 m_tornBits = 0
28
29 Allocation Status
30
31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
32 PFS (1:32352) = 0x60 MIXED_EXT ALLOCATED   0_PCT_FULL                     DIFF (1:6) = CHANGED
33 ML (1:7) = NOT MIN_LOGGED
34
35 Slot 0 Offset 0x60 Length 1010
36
37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
38 Memory Dump @0x095CC060
39
40
41 UNIQUIFIER = [NULL]
42
43 Slot 0 Column 1 Offset 0x4 Length 4
44
45 id = 29
46
47 Slot 0 Column 2 Offset 0x8 Length 999
48
49 col2 = xxx
50
51 col3 = [NULL]
52
53 Slot 1 Offset 0x844 Length 1010
54
55 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
56 Memory Dump @0x095CC844
57
58
59 UNIQUIFIER = [NULL]
60
61 Slot 1 Column 1 Offset 0x4 Length 4
62
63 id = 30
64
65 Slot 1 Column 2 Offset 0x8 Length 999
66
67 col2 = xxx
68
69 col3 = [NULL]
70
71 Slot 2 Offset 0x452 Length 1010
72
73 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
74 Memory Dump @0x095CC452
75
76
77 UNIQUIFIER = [NULL]
78
79 Slot 2 Column 1 Offset 0x4 Length 4
80
81 id = 31
82
83 Slot 2 Column 2 Offset 0x8 Length 999
84
85 col2 = xxx
86
87 col3 = [NULL]
88
89
90 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code

 再插入6条记录

1 INSERT INTO [dbo].[ClusteredTable] ( [id], [col2], [col3] )
2 SELECT 33,'xxx','' UNION ALL
3 SELECT 34,'xxx','' UNION ALL
4 SELECT 35,'xxx','' UNION ALL
5 SELECT 36,'xxx','' UNION ALL
6 SELECT 37,'xxx','' UNION ALL
7 SELECT 38,'xxx',''

可以看到多了一个数据页面14539

数据页面14539只有一条记录,m_slotCnt = 1

 1 PAGE: (1:14539)
 2
 3
 4 BUFFER:
 5
 6
 7 BUF @0x03F79CCC
 8
 9 bpage = 0x1A17C000                   bhash = 0x00000000                   bpageno = (1:14539)
10 bdbid = 5                            breferences = 0                      bUse1 = 20082
11 bstat = 0x2c0000b                    blog = 0x212159bb                    bnext = 0x00000000
12
13 PAGE HEADER:
14
15
16 Page @0x1A17C000
17
18 m_pageId = (1:14539)                 m_headerVersion = 1                  m_type = 1
19 m_typeFlagBits = 0x4                 m_level = 0                          m_flagBits = 0xc000
20 m_objId (AllocUnitId.idObj) = 395    m_indexId (AllocUnitId.idInd) = 256
21 Metadata: AllocUnitId = 72057594063814656
22 Metadata: PartitionId = 72057594054574080                                 Metadata: IndexId = 1
23 Metadata: ObjectId = 491148795       m_prevPage = (1:37036)               m_nextPage = (0:0)
24 pminlen = 1007                       m_slotCnt = 1                        m_freeCnt = 7084
25 m_freeData = 1106                    m_reservedCnt = 0                    m_lsn = (2775:120:10)
26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
27 m_tornBits = 0
28
29 Allocation Status
30
31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
32 PFS (1:8088) = 0x60 MIXED_EXT ALLOCATED   0_PCT_FULL                      DIFF (1:6) = CHANGED
33 ML (1:7) = NOT MIN_LOGGED
34
35 Slot 0 Offset 0x60 Length 1010
36
37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
38 Memory Dump @0x095CC060
39
40
41 UNIQUIFIER = [NULL]
42
43 Slot 0 Column 1 Offset 0x4 Length 4
44
45 id = 38
46
47 Slot 0 Column 2 Offset 0x8 Length 999
48
49 col2 = xxx
50
51 col3 = [NULL]
52
53
54 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code


 现在来重建一下索引

1 USE [pratice]
2 GO
3 ALTER INDEX [CIX] ON ClusteredTable REBUILD

我们看一下重组索引之后,数据页和聚集索引页面变成什么样子了???



数据页14539这个页面不见了,更重要的是原本4个数据页面现在只有3个,还有大家留意一下索引页和数据页的pageid,跟之前完全不一样

我们看一下聚集索引页面和数据页面有什么变化

聚集索引页面

 数据页14623, m_slotCnt = 8

  1 PAGE: (1:14623)
  2
  3
  4 BUFFER:
  5
  6
  7 BUF @0x03F692CC
  8
  9 bpage = 0x19A0E000                   bhash = 0x00000000                   bpageno = (1:14623)
 10 bdbid = 5                            breferences = 0                      bUse1 = 20925
 11 bstat = 0x2c0000b                    blog = 0x21bbbbcb                    bnext = 0x00000000
 12
 13 PAGE HEADER:
 14
 15
 16 Page @0x19A0E000
 17
 18 m_pageId = (1:14623)                 m_headerVersion = 1                  m_type = 1
 19 m_typeFlagBits = 0x0                 m_level = 0                          m_flagBits = 0x4
 20 m_objId (AllocUnitId.idObj) = 396    m_indexId (AllocUnitId.idInd) = 256
 21 Metadata: AllocUnitId = 72057594063880192
 22 Metadata: PartitionId = 72057594054639616                                 Metadata: IndexId = 1
 23 Metadata: ObjectId = 491148795       m_prevPage = (0:0)                   m_nextPage = (1:37042)
 24 pminlen = 1007                       m_slotCnt = 8                        m_freeCnt = 0
 25 m_freeData = 8176                    m_reservedCnt = 0                    m_lsn = (2775:140:33)
 26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
 27 m_tornBits = 0
 28
 29 Allocation Status
 30
 31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
 32 PFS (1:8088) = 0x60 MIXED_EXT ALLOCATED   0_PCT_FULL                      DIFF (1:6) = CHANGED
 33 ML (1:7) = NOT MIN_LOGGED
 34
 35 Slot 0 Offset 0x60 Length 1010
 36
 37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 38 Memory Dump @0x095CC060
 39
 40
 41 UNIQUIFIER = [NULL]
 42
 43 Slot 0 Column 1 Offset 0x4 Length 4
 44
 45 id = 1
 46
 47 Slot 0 Column 2 Offset 0x8 Length 999
 48
 49 col2 = xxx
 50
 51 col3 = [NULL]
 52
 53 Slot 1 Offset 0x452 Length 1010
 54
 55 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 56 Memory Dump @0x095CC452
 57
 58
 59 UNIQUIFIER = [NULL]
 60
 61 Slot 1 Column 1 Offset 0x4 Length 4
 62
 63 id = 3
 64
 65 Slot 1 Column 2 Offset 0x8 Length 999
 66
 67 col2 = xxx
 68
 69 col3 = [NULL]
 70
 71 Slot 2 Offset 0x844 Length 1010
 72
 73 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 74 Memory Dump @0x095CC844
 75
 76
 77 UNIQUIFIER = [NULL]
 78
 79 Slot 2 Column 1 Offset 0x4 Length 4
 80
 81 id = 5
 82
 83 Slot 2 Column 2 Offset 0x8 Length 999
 84
 85 col2 = xxx
 86
 87 col3 = [NULL]
 88
 89 Slot 3 Offset 0xc36 Length 1010
 90
 91 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 92 Memory Dump @0x095CCC36
 93
 94
 95 UNIQUIFIER = [NULL]
 96
 97 Slot 3 Column 1 Offset 0x4 Length 4
 98
 99 id = 7
100
101 Slot 3 Column 2 Offset 0x8 Length 999
102
103 col2 = xxx
104
105 col3 = [NULL]
106
107 Slot 4 Offset 0x1028 Length 1010
108
109 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
110 Memory Dump @0x095CD028
111
112
113 UNIQUIFIER = [NULL]
114
115 Slot 4 Column 1 Offset 0x4 Length 4
116
117 id = 9
118
119 Slot 4 Column 2 Offset 0x8 Length 999
120
121 col2 = xxx
122
123 col3 = [NULL]
124
125 Slot 5 Offset 0x141a Length 1010
126
127 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
128 Memory Dump @0x095CD41A
129
130
131 UNIQUIFIER = [NULL]
132
133 Slot 5 Column 1 Offset 0x4 Length 4
134
135 id = 11
136
137 Slot 5 Column 2 Offset 0x8 Length 999
138
139 col2 = xxx
140
141 col3 = [NULL]
142
143 Slot 6 Offset 0x180c Length 1010
144
145 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
146 Memory Dump @0x095CD80C
147
148
149 UNIQUIFIER = [NULL]
150
151 Slot 6 Column 1 Offset 0x4 Length 4
152
153 id = 13
154
155 Slot 6 Column 2 Offset 0x8 Length 999
156
157 col2 = xxx
158
159 col3 = [NULL]
160
161 Slot 7 Offset 0x1bfe Length 1010
162
163 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
164 Memory Dump @0x095CDBFE
165
166
167 UNIQUIFIER = [NULL]
168
169 Slot 7 Column 1 Offset 0x4 Length 4
170
171 id = 15
172
173 Slot 7 Column 2 Offset 0x8 Length 999
174
175 col2 = xxx
176
177 col3 = [NULL]
178
179
180 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code

 数据页37042, m_slotCnt = 8

  1 PAGE: (1:37042)
  2
  3
  4 BUFFER:
  5
  6
  7 BUF @0x03F68738
  8
  9 bpage = 0x1997A000                   bhash = 0x00000000                   bpageno = (1:37042)
 10 bdbid = 5                            breferences = 0                      bUse1 = 21031
 11 bstat = 0x2c0000b                    blog = 0xbbbbbbcb                    bnext = 0x00000000
 12
 13 PAGE HEADER:
 14
 15
 16 Page @0x1997A000
 17
 18 m_pageId = (1:37042)                 m_headerVersion = 1                  m_type = 1
 19 m_typeFlagBits = 0x0                 m_level = 0                          m_flagBits = 0x4
 20 m_objId (AllocUnitId.idObj) = 396    m_indexId (AllocUnitId.idInd) = 256
 21 Metadata: AllocUnitId = 72057594063880192
 22 Metadata: PartitionId = 72057594054639616                                 Metadata: IndexId = 1
 23 Metadata: ObjectId = 491148795       m_prevPage = (1:14623)               m_nextPage = (1:13572)
 24 pminlen = 1007                       m_slotCnt = 8                        m_freeCnt = 0
 25 m_freeData = 8176                    m_reservedCnt = 0                    m_lsn = (2775:140:42)
 26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
 27 m_tornBits = 0
 28
 29 Allocation Status
 30
 31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
 32 PFS (1:32352) = 0x60 MIXED_EXT ALLOCATED   0_PCT_FULL                     DIFF (1:6) = CHANGED
 33 ML (1:7) = NOT MIN_LOGGED
 34
 35 Slot 0 Offset 0x60 Length 1010
 36
 37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 38 Memory Dump @0x095CC060
 39
 40
 41 UNIQUIFIER = [NULL]
 42
 43 Slot 0 Column 1 Offset 0x4 Length 4
 44
 45 id = 17
 46
 47 Slot 0 Column 2 Offset 0x8 Length 999
 48
 49 col2 = xxx
 50
 51 col3 = [NULL]
 52
 53 Slot 1 Offset 0x452 Length 1010
 54
 55 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 56 Memory Dump @0x095CC452
 57
 58
 59 UNIQUIFIER = [NULL]
 60
 61 Slot 1 Column 1 Offset 0x4 Length 4
 62
 63 id = 19
 64
 65 Slot 1 Column 2 Offset 0x8 Length 999
 66
 67 col2 = xxx
 68
 69 col3 = [NULL]
 70
 71 Slot 2 Offset 0x844 Length 1010
 72
 73 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 74 Memory Dump @0x095CC844
 75
 76
 77 UNIQUIFIER = [NULL]
 78
 79 Slot 2 Column 1 Offset 0x4 Length 4
 80
 81 id = 21
 82
 83 Slot 2 Column 2 Offset 0x8 Length 999
 84
 85 col2 = xxx
 86
 87 col3 = [NULL]
 88
 89 Slot 3 Offset 0xc36 Length 1010
 90
 91 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 92 Memory Dump @0x095CCC36
 93
 94
 95 UNIQUIFIER = [NULL]
 96
 97 Slot 3 Column 1 Offset 0x4 Length 4
 98
 99 id = 23
100
101 Slot 3 Column 2 Offset 0x8 Length 999
102
103 col2 = xxx
104
105 col3 = [NULL]
106
107 Slot 4 Offset 0x1028 Length 1010
108
109 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
110 Memory Dump @0x095CD028
111
112
113 UNIQUIFIER = [NULL]
114
115 Slot 4 Column 1 Offset 0x4 Length 4
116
117 id = 25
118
119 Slot 4 Column 2 Offset 0x8 Length 999
120
121 col2 = xxx
122
123 col3 = [NULL]
124
125 Slot 5 Offset 0x141a Length 1010
126
127 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
128 Memory Dump @0x095CD41A
129
130
131 UNIQUIFIER = [NULL]
132
133 Slot 5 Column 1 Offset 0x4 Length 4
134
135 id = 27
136
137 Slot 5 Column 2 Offset 0x8 Length 999
138
139 col2 = xxx
140
141 col3 = [NULL]
142
143 Slot 6 Offset 0x180c Length 1010
144
145 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
146 Memory Dump @0x095CD80C
147
148
149 UNIQUIFIER = [NULL]
150
151 Slot 6 Column 1 Offset 0x4 Length 4
152
153 id = 29
154
155 Slot 6 Column 2 Offset 0x8 Length 999
156
157 col2 = xxx
158
159 col3 = [NULL]
160
161 Slot 7 Offset 0x1bfe Length 1010
162
163 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
164 Memory Dump @0x095CDBFE
165
166
167 UNIQUIFIER = [NULL]
168
169 Slot 7 Column 1 Offset 0x4 Length 4
170
171 id = 30
172
173 Slot 7 Column 2 Offset 0x8 Length 999
174
175 col2 = xxx
176
177 col3 = [NULL]
178
179
180 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code

数据页14623, m_slotCnt = 7

  1 PAGE: (1:13572)
  2
  3
  4 BUFFER:
  5
  6
  7 BUF @0x03F369D0
  8
  9 bpage = 0x1845C000                   bhash = 0x00000000                   bpageno = (1:13572)
 10 bdbid = 5                            breferences = 0                      bUse1 = 21131
 11 bstat = 0x3c0000b                    blog = 0x159bbbcb                    bnext = 0x00000000
 12
 13 PAGE HEADER:
 14
 15
 16 Page @0x1845C000
 17
 18 m_pageId = (1:13572)                 m_headerVersion = 1                  m_type = 1
 19 m_typeFlagBits = 0x0                 m_level = 0                          m_flagBits = 0x4
 20 m_objId (AllocUnitId.idObj) = 396    m_indexId (AllocUnitId.idInd) = 256
 21 Metadata: AllocUnitId = 72057594063880192
 22 Metadata: PartitionId = 72057594054639616                                 Metadata: IndexId = 1
 23 Metadata: ObjectId = 491148795       m_prevPage = (1:37042)               m_nextPage = (0:0)
 24 pminlen = 1007                       m_slotCnt = 7                        m_freeCnt = 1012
 25 m_freeData = 7166                    m_reservedCnt = 0                    m_lsn = (2775:140:44)
 26 m_xactReserved = 0                   m_xdesId = (0:0)                     m_ghostRecCnt = 0
 27 m_tornBits = 0
 28
 29 Allocation Status
 30
 31 GAM (1:2) = ALLOCATED                SGAM (1:3) = ALLOCATED
 32 PFS (1:8088) = 0x60 MIXED_EXT ALLOCATED   0_PCT_FULL                      DIFF (1:6) = CHANGED
 33 ML (1:7) = NOT MIN_LOGGED
 34
 35 Slot 0 Offset 0x60 Length 1010
 36
 37 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 38 Memory Dump @0x095CC060
 39
 40
 41 UNIQUIFIER = [NULL]
 42
 43 Slot 0 Column 1 Offset 0x4 Length 4
 44
 45 id = 31
 46
 47 Slot 0 Column 2 Offset 0x8 Length 999
 48
 49 col2 = xxx
 50
 51 col3 = [NULL]
 52
 53 Slot 1 Offset 0x452 Length 1010
 54
 55 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 56 Memory Dump @0x095CC452
 57
 58
 59 UNIQUIFIER = [NULL]
 60
 61 Slot 1 Column 1 Offset 0x4 Length 4
 62
 63 id = 33
 64
 65 Slot 1 Column 2 Offset 0x8 Length 999
 66
 67 col2 = xxx
 68
 69 col3 = [NULL]
 70
 71 Slot 2 Offset 0x844 Length 1010
 72
 73 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 74 Memory Dump @0x095CC844
 75
 76
 77 UNIQUIFIER = [NULL]
 78
 79 Slot 2 Column 1 Offset 0x4 Length 4
 80
 81 id = 34
 82
 83 Slot 2 Column 2 Offset 0x8 Length 999
 84
 85 col2 = xxx
 86
 87 col3 = [NULL]
 88
 89 Slot 3 Offset 0xc36 Length 1010
 90
 91 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
 92 Memory Dump @0x095CCC36
 93
 94
 95 UNIQUIFIER = [NULL]
 96
 97 Slot 3 Column 1 Offset 0x4 Length 4
 98
 99 id = 35
100
101 Slot 3 Column 2 Offset 0x8 Length 999
102
103 col2 = xxx
104
105 col3 = [NULL]
106
107 Slot 4 Offset 0x1028 Length 1010
108
109 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
110 Memory Dump @0x095CD028
111
112
113 UNIQUIFIER = [NULL]
114
115 Slot 4 Column 1 Offset 0x4 Length 4
116
117 id = 36
118
119 Slot 4 Column 2 Offset 0x8 Length 999
120
121 col2 = xxx
122
123 col3 = [NULL]
124
125 Slot 5 Offset 0x141a Length 1010
126
127 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
128 Memory Dump @0x095CD41A
129
130
131 UNIQUIFIER = [NULL]
132
133 Slot 5 Column 1 Offset 0x4 Length 4
134
135 id = 37
136
137 Slot 5 Column 2 Offset 0x8 Length 999
138
139 col2 = xxx
140
141 col3 = [NULL]
142
143 Slot 6 Offset 0x180c Length 1010
144
145 Record Type = PRIMARY_RECORD         Record Attributes =  NULL_BITMAP
146 Memory Dump @0x095CD80C
147
148
149 UNIQUIFIER = [NULL]
150
151 Slot 6 Column 1 Offset 0x4 Length 4
152
153 id = 38
154
155 Slot 6 Column 2 Offset 0x8 Length 999
156
157 col2 = xxx
158
159 col3 = [NULL]
160
161
162 DBCC 执行完毕。如果 DBCC 输出了错误信息,请与系统管理员联系。
View Code



 从上面数据页面和聚集索引页面的结果看,重建索引和重组索引基本上是一样的效果,只是,重建索引会把索引页和数据页删除,然后分配新的索引页和数据页

所以重建索引开销还是比较大的

这里宋大侠有一个建议:

当[dm_db_index_physical_stats]DMV里的[avg_fragmentation_in_percent]字段大于30%的时候使用索引重建

当[avg_fragmentation_in_percent]等于小于30%的时候使用索引重组

[avg_fragmentation_in_percent]>30%就重建索引

[avg_fragmentation_in_percent]<=30%就重组索引

1 SELECT  [avg_fragmentation_in_percent]
2 FROM    [sys].[dm_db_index_physical_stats](DB_ID('pratice'),
3                                            OBJECT_ID('pratice.dbo.ClusteredTable'),
4                                            NULL, NULL, NULL)

---------------------------------------------------华丽的分割线--------------------------------------------

文章写完了,本人知道还有不足的地方

还是那一句:

如有不对的地方,欢迎强烈拍砖哦o(∩_∩)o

发表评论
用户名: 匿名
