圆角PopupWindow对话框和圆角EditText

 2010/11/19 9:20:00  ypf3027  http://ypf3027.javaeye.com  我要评论(0)
  • 摘要:Android默认的PopupWindow和EditText的外观是矩形框,看起来不是太好,本示例通过设置布局View的背景和PopupWindowd对象的背景,实现有白色圆角边框的对话框效果和圆角文字编辑框。代码如下(关键部分是背景布局XML):对话框弹出效果图:packagecom.test;importandroid.app.Activity;importandroid.content.Context;importandroid.os.Bundle;importandroid.text
  • 标签:圆角PopupWindow对话框 圆角EditText

?

Android默认的PopupWindow和EditText的外观是矩形框,看起来不是太好,本示例通过设置布局View的背景和PopupWindowd对象的背景,实现有白色圆角边框的对话框效果和圆角文字编辑框。代码如下(关键部分是背景布局XML):

?


?

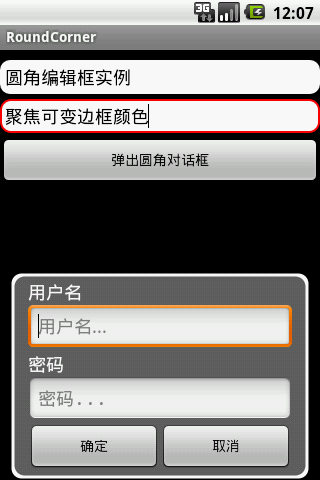

对话框弹出效果图:



?
?

?

package com.test;

import android.app.Activity;
import android.content.Context;
import android.os.Bundle;
import android.text.InputType;
import android.view.Gravity;
import android.view.LayoutInflater;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.PopupWindow;
import android.widget.LinearLayout.LayoutParams;


public class RoundCorner extends Activity {

	Button mButton;

	@Override
	public void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.main);

		// 定义按钮
		mButton = (Button) this.findViewById(R.id.Button01);
		mButton.setOnClickListener(new ClickEvent());

		// 两个圆角文字编辑框
		EditText et1 = (EditText) this.findViewById(R.id.roundedtext1);
		EditText et2 = (EditText) this.findViewById(R.id.roundedtext2);
		et1.setInputType(InputType.TYPE_TEXT_FLAG_AUTO_CORRECT);
		et2.setInputType(InputType.TYPE_NULL); //不显示软键盘

	}

	// 处理按键事件
	class ClickEvent implements OnClickListener {
		@Override
		public void onClick(View v) {
			if (v == mButton) {
				showRoundCornerDialog(RoundCorner.this, RoundCorner.this.findViewById(R.id.Button01));
			}
		}
	}

	// 显示圆角对话框
	public void showRoundCornerDialog(Context context, View parent) {
		LayoutInflater inflater = (LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);

		// 获取圆角对话框布局View,背景设为圆角
		final View dialogView = inflater.inflate(R.layout.popupwindow, null, false);
		dialogView.setBackgroundResource(R.drawable.rounded_corners_view);

		// 创建弹出对话框,设置弹出对话框的背景为圆角
		final PopupWindow pw = new PopupWindow(dialogView, 300, LayoutParams.WRAP_CONTENT, true);
		pw.setBackgroundDrawable(getResources().getDrawable(R.drawable.rounded_corners_pop));

		//注:上面的设背景操作为重点部分,可以自行注释掉其中一个或两个设背景操作,查看对话框效果
		//注:上面的设背景操作为重点部分,可以自行注释掉其中一个或两个设背景操作,查看对话框效果

		final EditText edtUsername = (EditText) dialogView.findViewById(R.id.username_edit);
		final EditText edtPassword = (EditText) dialogView.findViewById(R.id.password_edit);
		edtUsername.setHint("用户名..."); // 设置提示语
		edtPassword.setHint("密码...");   // 设置提示语

		// OK按钮及其处理事件
		Button btnOK = (Button) dialogView.findViewById(R.id.BtnOK);
		btnOK.setOnClickListener(new OnClickListener() {
			@Override
			public void onClick(View v) {
				// 设置文本框内容
				edtUsername.setText("username");
				edtPassword.setText("password");
			}
		});

		// Cancel按钮及其处理事件
		Button btnCancel = (Button) dialogView.findViewById(R.id.BtnCancel);
		btnCancel.setOnClickListener(new OnClickListener() {
			@Override
			public void onClick(View v) {
				pw.dismiss();// 关闭
			}
		});

		// 显示RoundCorner对话框
		pw.showAtLocation(parent, Gravity.CENTER|Gravity.BOTTOM, 0, 0);
	}

}

?

?

1,圆角对话框的背景布局文件XML。

--------rounded_corners_pop.xml此为PopupWindow的背景布局文件

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android">
	<solid android:color="#ffffffff" />

	<stroke android:width="3dp" color="#ffff8080" />

	<corners android:radius="10dp" />

	<padding android:left="3dp" android:top="3dp"
		android:right="3dp" android:bottom="3dp" />
</shape>

?

--------rounded_corners_view.xml此为对话框内容的背景布局文件

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android">
	<solid android:color="#ff606060" />

	<stroke android:width="3dp" color="#ffff8080" />

	<corners android:radius="10dp" />

	<padding android:left="5dp" android:top="5dp"
		android:right="5dp" android:bottom="5dp" />
</shape>

?

?2,圆角文字编辑框的三个布局XML文件

---------rounded_edittext_states.xml

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <item
     	android:state_pressed="true"
     	android:state_enabled="true"
        android:drawable="@drawable/rounded_focused" />
    <item
     	android:state_focused="true"
     	android:state_enabled="true"
        android:drawable="@drawable/rounded_focused" />
    <item
     	android:state_enabled="true"
        android:drawable="@drawable/rounded_edittext" />
</selector>

?

----------rounded_edittext.xml

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
	android:shape="rectangle"
	android:padding="8dip">
 	<solid android:color="#FFFFFF"/>
    <corners
     	android:bottomRightRadius="10dip"
     	android:bottomLeftRadius="10dip"
  		android:topLeftRadius="10dip"
  		android:topRightRadius="10dip"/>
</shape>

?

-----------rounded_edittext_focused.xml

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
	android:shape="rectangle"
	android:padding="8dip">
 	<solid android:color="#FFFFFF"/>
 	<stroke android:width="2dip" android:color="#FF0000" />
    <corners
     	android:bottomRightRadius="10dip"
     	android:bottomLeftRadius="10dip"
  		android:topLeftRadius="10dip"
  		android:topRightRadius="10dip"/>
</shape>

?

?

3,对话框的布局文件popupwindow.xml

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
	android:layout_width="fill_parent" android:layout_height="wrap_content"
	android:orientation="vertical">

	<TextView android:id="@+id/username_view"
		android:layout_height="wrap_content"
		android:layout_width="fill_parent"
		android:layout_marginLeft="10dip"
		android:layout_marginRight="10dip"
		android:text="用户名"
		android:textAppearance="?android:attr/textAppearanceMedium"/>

	<EditText android:id="@+id/username_edit"
		android:layout_height="wrap_content"
		android:layout_width="fill_parent"
		android:layout_marginLeft="10dip"
		android:layout_marginRight="10dip"
		android:capitalize="none"
		android:textAppearance="?android:attr/textAppearanceMedium" />

	<TextView android:id="@+id/password_view"
		android:layout_height="wrap_content"
		android:layout_width="fill_parent"
		android:layout_marginLeft="10dip"
		android:layout_marginRight="10dip"
		android:text="密码"
		android:textAppearance="?android:attr/textAppearanceMedium"/>

	<EditText android:id="@+id/password_edit"
		android:layout_height="wrap_content"
		android:layout_width="fill_parent"
		android:layout_marginLeft="10dip"
		android:layout_marginRight="10dip"
		android:capitalize="none"
		android:password="true"
		android:textAppearance="?android:attr/textAppearanceMedium" />

	<LinearLayout android:id="@+id/LinearLayout01"
		android:layout_height="wrap_content"
		android:layout_width="fill_parent"
		android:gravity="center"
		android:paddingLeft="10dip"
		android:paddingRight="10dip">

		<Button android:id="@+id/BtnOK"
			android:layout_width="wrap_content"
			android:layout_height="wrap_content"
			android:layout_weight="1"
			android:text="确定"/>

		<Button android:id="@+id/BtnCancel"
			android:layout_width="wrap_content"
			android:layout_height="wrap_content"
			android:layout_weight="1"
			android:text="取消"/>
	</LinearLayout>

</LinearLayout>

?

?

4,主布局文件 main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
	android:orientation="vertical" android:layout_width="fill_parent"
	android:layout_height="fill_parent"
	android:paddingTop="10dip">

	<EditText android:id="@+id/roundedtext1"
	    android:layout_width="fill_parent"
	    android:layout_height="wrap_content"
	    android:text="圆角编辑框实例"
	    android:padding="5dip"
	    android:background="@drawable/rounded_edittext" />

	<!-- 此View为布局使用 -->
	<View android:layout_height="5dip" android:layout_width="fill_parent"/>

	<EditText android:id="@+id/roundedtext2"
	    android:layout_width="fill_parent"
	    android:layout_height="wrap_content"
	    android:text="聚焦可变边框颜色"
	    android:padding="5dip"
	    android:paddingTop="30dip"
	    android:background="@drawable/rounded_edittext_states"/>

	<!-- 此View为布局使用 -->
	<View android:layout_height="5dip" android:layout_width="fill_parent"/>

	<Button android:id="@+id/Button01"
		android:layout_height="wrap_content"
		android:layout_width="fill_parent"
		android:text="弹出圆角对话框"/>

</LinearLayout>

?

注:附件中为完整项目代码实例

?

?
