浅析Dragger2依赖注入实现过程

 2017/6/23 5:30:55  monkey1992  程序员俱乐部  我要评论(0)
  • 摘要:Dragger2是Android应用开发中一个非常优秀的依赖注入框架。本文主要通过结合Google给出的MVP开发案例todo-mvp-dagger(GitHub连接地址:https://github.com/googlesamples/android-architecture/tree/todo-mvp-dagger/),简要分析一下Dragger2的依赖注入实现过程。如果是刚入手学习Dragger2,这里推荐三篇非常不错的连载文章:http://www.jianshu
  • 标签:实现 过程 实现过程

  Dragger2是Android应用开发中一个非常优秀的依赖注入框架。本文主要通过结合Google给出的MVP开发案例todo-mvp-dagger(GitHub连接地址:https://github.com/googlesamples/android-architecture/tree/todo-mvp-dagger/),简要分析一下Dragger2的依赖注入实现过程

  如果是刚入手学习Dragger2,这里推荐三篇非常不错的连载文章:http://www.jianshu.com/p/cd2c1c9f68d4,这三篇文章写得非常用心,而且思路清晰,生动有趣,容易理解

  todo-mvp-dagger在功能上划分为addedittask,statistics,taskdetail,tasks四个模块,由于每个模块除了功能逻辑不同之外,实现方式相差不大,所以我就只分析其中的tasks模块,其它模块可参照此模块的分析流程来分析。

  Dragger2的依赖注入是通过Java注解的方式来实现的。Dragger2中提供了@Inject,@Component,@Module,@Provides等一系列注解,通过注解,Dragger2能够在程序编译阶段利用程序员创建的Java文件,按照编译模板自动生成对应的.class辅助文件,在这些.class辅助文件中会有相应代码来自动完成依赖对象的创建。Dragger2正是以此种看似自动化的技术手段来代替手动new对象的过程。如下图,红色框中的.class文件就是Tasks模块在编译过后自动生成的.class辅助文件。

  其实,现在有很多框架都利用了注解的方式,通过在编译阶段生成相应的.class文件来完成依赖注入或者其它某些操作,如阿里已经开源的路由框架ARouter。

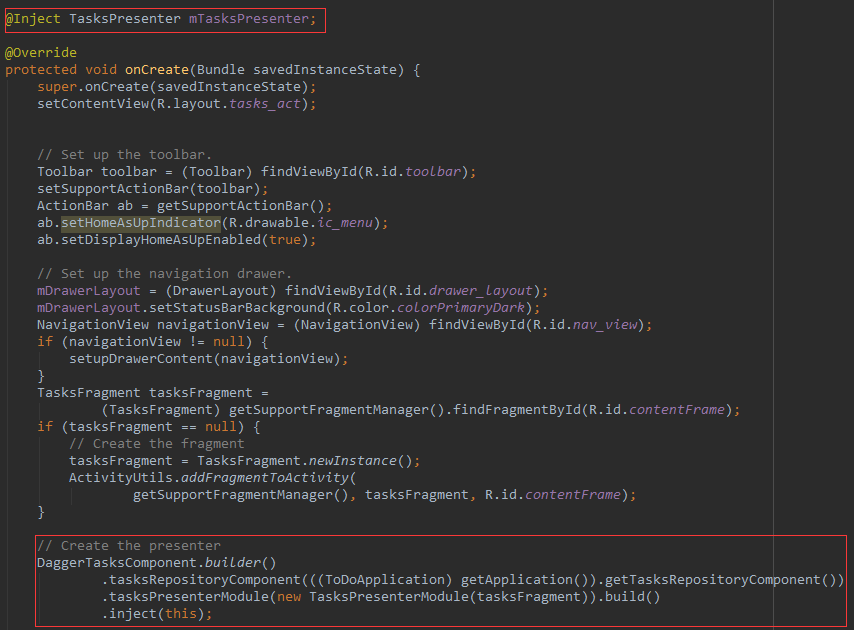

  那Dragger2的依赖注入究竟是怎样的一个过程呢?我们先来看TasksActivity。下面是TasksActivity的部分代码。

  TasksActivity中依赖了一个对象:mTasksPresenter。mTasksPresenter用@Inject标注,表示在TasksActivity实例化时,mTasksPresenter需要被自动创建,然后注入到TasksActivity实例当中去。此时,我们可能会想,是不是用@Inject标注一下就实现依赖注入了?其实不然。我们看到上图下方的红色框中有一段代码,这段代码很长,因为DaggerTasksComponent这个类中使用了Builder模式,只要稍微拆分一下明白了,其实这段代码就做了一件事情,就是调用了TasksComponent的inject()方法,而这里才是mTasksPresenter真正被实例化的地方。

  我们再来看TasksComponent,这是一个很简单的接口,里面声明了一个inject(TasksActivity activity)方法:

 1 package com.example.android.architecture.blueprints.todoapp.tasks;
 2
 3 import com.example.android.architecture.blueprints.todoapp.ToDoApplication;
 4 import com.example.android.architecture.blueprints.todoapp.data.source.TasksRepositoryComponent;
 5 import com.example.android.architecture.blueprints.todoapp.util.FragmentScoped;
 6
 7 import dagger.Component;
 8
 9 /**
10  * This is a Dagger component. Refer to {@link ToDoApplication} for the list of Dagger components
11  * used in this application.
12  * <P>
13  * Because this component depends on the {@link TasksRepositoryComponent}, which is a singleton, a
14  * scope must be specified. All fragment components use a custom scope for this purpose.
15  */
16 @FragmentScoped
17 @Component(dependencies = TasksRepositoryComponent.class, modules = TasksPresenterModule.class)
18 public interface TasksComponent {
19
20     void inject(TasksActivity activity);
21
22 }

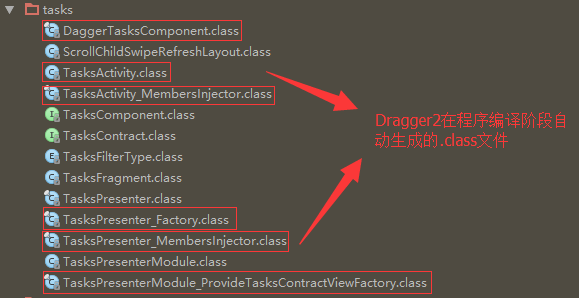

  有接口,对应的一般就有实现类,TasksComponent的实现类在哪里呢?我们注意到TasksComponent 被@Component标注,@Component是干什么的?@Component是用来标识接口或者抽象类,被@Componen标注的接口或者抽象类,在程序编译阶段会自动生成带Dragger前缀的.class文件,例如TasksComponent 被@Component标注,就会生成DraggerTasksComponent.class文件。生成的.class文件便是被@Component标注的接口或者抽象类的实现。我们点开DraggerTasksComponent.class,其中的代码是这样子的:

  1 package com.example.android.architecture.blueprints.todoapp.tasks;
  2
  3 import com.example.android.architecture.blueprints.todoapp.data.source.TasksRepository;
  4 import com.example.android.architecture.blueprints.todoapp.data.source.TasksRepositoryComponent;
  5
  6 import javax.annotation.Generated;
  7 import javax.inject.Provider;
  8
  9 import dagger.MembersInjector;
 10 import dagger.internal.Factory;
 11 import dagger.internal.Preconditions;
 12
 13 @Generated(
 14         value = "dagger.internal.codegen.ComponentProcessor",
 15         comments = "https://google.github.io/dagger"
 16 )
 17 public final class DaggerTasksComponent implements TasksComponent {
 18     private MembersInjector<TasksPresenter> tasksPresenterMembersInjector;
 19
 20     private Provider<TasksRepository> getTasksRepositoryProvider;
 21
 22     private Provider<TasksContract.View> provideTasksContractViewProvider;
 23
 24     private Provider<TasksPresenter> tasksPresenterProvider;
 25
 26     private MembersInjector<TasksActivity> tasksActivityMembersInjector;
 27
 28     private DaggerTasksComponent(Builder builder) {
 29         assert builder != null;
 30         initialize(builder);
 31     }
 32
 33     public static Builder builder() {
 34         return new Builder();
 35     }
 36
 37     @SuppressWarnings("unchecked")
 38     private void initialize(final Builder builder) {
 39
 40         this.tasksPresenterMembersInjector = TasksPresenter_MembersInjector.create();
 41
 42         this.getTasksRepositoryProvider =
 43                 new Factory<TasksRepository>() {
 44                     private final TasksRepositoryComponent tasksRepositoryComponent =
 45                             builder.tasksRepositoryComponent;
 46
 47                     @Override
 48                     public TasksRepository get() {
 49                         return Preconditions.checkNotNull(
 50                                 tasksRepositoryComponent.getTasksRepository(),
 51                                 "Cannot return null from a non-@Nullable component method");
 52                     }
 53                 };
 54
 55         this.provideTasksContractViewProvider =
 56                 TasksPresenterModule_ProvideTasksContractViewFactory.create(builder.tasksPresenterModule);
 57
 58         this.tasksPresenterProvider =
 59                 TasksPresenter_Factory.create(
 60                         tasksPresenterMembersInjector,
 61                         getTasksRepositoryProvider,
 62                         provideTasksContractViewProvider);
 63
 64         this.tasksActivityMembersInjector =
 65                 TasksActivity_MembersInjector.create(tasksPresenterProvider);
 66     }
 67
 68     @Override
 69     public void inject(TasksActivity activity) {
 70         tasksActivityMembersInjector.injectMembers(activity);
 71     }
 72
 73     public static final class Builder {
 74         private TasksPresenterModule tasksPresenterModule;
 75
 76         private TasksRepositoryComponent tasksRepositoryComponent;
 77
 78         private Builder() {
 79         }
 80
 81         public TasksComponent build() {
 82             if (tasksPresenterModule == null) {
 83                 throw new IllegalStateException(
 84                         TasksPresenterModule.class.getCanonicalName() + " must be set");
 85             }
 86             if (tasksRepositoryComponent == null) {
 87                 throw new IllegalStateException(
 88                         TasksRepositoryComponent.class.getCanonicalName() + " must be set");
 89             }
 90             return new DaggerTasksComponent(this);
 91         }
 92
 93         public Builder tasksPresenterModule(TasksPresenterModule tasksPresenterModule) {
 94             this.tasksPresenterModule = Preconditions.checkNotNull(tasksPresenterModule);
 95             return this;
 96         }
 97
 98         public Builder tasksRepositoryComponent(TasksRepositoryComponent tasksRepositoryComponent) {
 99             this.tasksRepositoryComponent = Preconditions.checkNotNull(tasksRepositoryComponent);
100             return this;
101         }
102     }
103 }

  DaggerTasksComponent采用了Builder模式进行设计,实现了inject(TasksActivity activity)方法。DaggerTasksComponent中的代码有一点点多,而且成员变量都是泛型类对象,看似稍微有点复杂,我们可以整体大概看一下,然后还是从inject(TasksActivity activity)方法的实现入手。inject(TasksActivity activity)的实现很简单,就一行代码:

1 tasksActivityMembersInjector.injectMembers(activity);

  这一行代码调用了接口MembersInjector<T>的void injectMembers(T instance)方法,好,接下来我们看看MembersInjector<T>以及其中的void injectMembers(T instance)方法是用来做什么的。MembersInjector<T>的代码如下:

 1 package dagger;
 2
 3 /**
 4  * Injects dependencies into the fields and methods on instances of type {@code T}. Ignores the
 5  * presence or absence of an injectable constructor.
 6  *
 7  * @param <T> type to inject members of
 8  *
 9  * @author Bob Lee
10  * @author Jesse Wilson
11  * @since 2.0 (since 1.0 without the provision that {@link #injectMembers} cannot accept
12  *      {@code null})
13  */
14 public interface MembersInjector<T> {
15
16   /**
17    * Injects dependencies into the fields and methods of {@code instance}. Ignores the presence or
18    * absence of an injectable constructor.
19    *
20    * <p>Whenever the object graph creates an instance, it performs this injection automatically
21    * (after first performing constructor injection), so if you're able to let the object graph
22    * create all your objects for you, you'll never need to use this method.
23    *
24    * @param instance into which members are to be injected
25    * @throws NullPointerException if {@code instance} is {@code null}
26    */
27   void injectMembers(T instance);
28 }

  看过注释,我们知道了,原来这个接口就是用来将依赖注入到目标实体(即依赖对象所依附的实体,显然,这里就是指TasksActivity)当中去。到这里,我们好像有点眉目了。不着急,我们继续看MembersInjector<T>的实现。刚刚我们看了DaggerTasksComponent中inject(TasksActivity activity)方法的实现,里面的tasksActivityMembersInjector对象调用了injectMembers()方法,因此可断定tasksActivityMembersInjector就是MembersInjector<T>的实现类对象,那么,tasksActivityMembersInjector是怎么得来的呢?继续看DaggerTasksComponent的代码,发现tasksActivityMembersInjector是这样被创建的:

1 this.tasksActivityMembersInjector = TasksActivity_MembersInjector.create(tasksPresenterProvider);
  TasksActivity_MembersInjector的create()方法创建了tasksActivityMembersInjector。于是,我们再来看TasksActivity_MembersInjector这个类,TasksActivity_MembersInjector代码如下:
 1 package com.example.android.architecture.blueprints.todoapp.tasks;
 2
 3 import javax.annotation.Generated;
 4 import javax.inject.Provider;
 5
 6 import dagger.MembersInjector;
 7
 8 @Generated(
 9         value = "dagger.internal.codegen.ComponentProcessor",
10         comments = "https://google.github.io/dagger"
11 )
12 public final class TasksActivity_MembersInjector implements MembersInjector<TasksActivity> {
13     private final Provider<TasksPresenter> mTasksPresenterProvider;
14
15     public TasksActivity_MembersInjector(Provider<TasksPresenter> mTasksPresenterProvider) {
16         assert mTasksPresenterProvider != null;
17         this.mTasksPresenterProvider = mTasksPresenterProvider;
18     }
19
20     public static MembersInjector<TasksActivity> create(
21             Provider<TasksPresenter> mTasksPresenterProvider) {
22         return new TasksActivity_MembersInjector(mTasksPresenterProvider);
23     }
24
25     @Override
26     public void injectMembers(TasksActivity instance) {
27         if (instance == null) {
28             throw new NullPointerException("Cannot inject members into a null reference");
29         }
30         instance.mTasksPresenter = mTasksPresenterProvider.get();
31     }
32
33     public static void injectMTasksPresenter(
34             TasksActivity instance, Provider<TasksPresenter> mTasksPresenterProvider) {
35         instance.mTasksPresenter = mTasksPresenterProvider.get();
36     }
37 }
  TasksActivity_MembersInjector正是刚刚我们所看的MembersInjector<T>的一个实现类,TasksActivity_MembersInjector实现了injectMembers(),在injectMembers()的实现中干了这么一件事情:
1 instance.mTasksPresenter = mTasksPresenterProvider.get();

  哦!原来TasksActivity中的mTasksPresenter是通过mTasksPresenterProvider.get()得来的!此时,迷雾变得逐渐清晰了!接下来再看mTasksPresenterProvider是如何来的。

  mTasksPresenterProvider在TasksActivity_MembersInjector的构造方法中被赋值,而TasksActivity_MembersInjector的构造方法是在create()方法中被调用的,于是,我们回到DaggerTasksComponent中调用TasksActivity_MembersInjector的create()方法的地方。找到传入create()方法的参数tasksPresenterProvider,发现tasksPresenterProvider又是由TasksPresenter_Factory的create()方法创建的。接下来,我们进一步看TasksPresenter_Factory的代码:

 1 package com.example.android.architecture.blueprints.todoapp.tasks;
 2
 3 import com.example.android.architecture.blueprints.todoapp.data.source.TasksRepository;
 4
 5 import javax.annotation.Generated;
 6 import javax.inject.Provider;
 7
 8 import dagger.MembersInjector;
 9 import dagger.internal.Factory;
10 import dagger.internal.MembersInjectors;
11
12 @Generated(
13         value = "dagger.internal.codegen.ComponentProcessor",
14         comments = "https://google.github.io/dagger"
15 )
16 public final class TasksPresenter_Factory implements Factory<TasksPresenter> {
17     private final MembersInjector<TasksPresenter> tasksPresenterMembersInjector;
18
19     private final Provider<TasksRepository> tasksRepositoryProvider;
20
21     private final Provider<TasksContract.View> tasksViewProvider;
22
23     public TasksPresenter_Factory(
24             MembersInjector<TasksPresenter> tasksPresenterMembersInjector,
25             Provider<TasksRepository> tasksRepositoryProvider,
26             Provider<TasksContract.View> tasksViewProvider) {
27         assert tasksPresenterMembersInjector != null;
28         this.tasksPresenterMembersInjector = tasksPresenterMembersInjector;
29         assert tasksRepositoryProvider != null;
30         this.tasksRepositoryProvider = tasksRepositoryProvider;
31         assert tasksViewProvider != null;
32         this.tasksViewProvider = tasksViewProvider;
33     }
34
35     @Override
36     public TasksPresenter get() {
37         return MembersInjectors.injectMembers(
38                 tasksPresenterMembersInjector,
39                 new TasksPresenter(tasksRepositoryProvider.get(), tasksViewProvider.get()));
40     }
41
42     public static Factory<TasksPresenter> create(
43             MembersInjector<TasksPresenter> tasksPresenterMembersInjector,
44             Provider<TasksRepository> tasksRepositoryProvider,
45             Provider<TasksContract.View> tasksViewProvider) {
46         return new TasksPresenter_Factory(
47                 tasksPresenterMembersInjector, tasksRepositoryProvider, tasksViewProvider);
48     }
49 }

  我们发现,在TasksPresenter_Factory实现的get()方法中,一个匿名TasksPresenter对象被创建,这个匿名对象正是被注入到TasksActivity的依赖对象!

  我们再回过头来看,因为这里的get()方法其实就是Provider<TasksPresenter>的具体实现,在TasksActivity_MembersInjector中的injectMembers(TasksActivity instance)方法中被TasksActivity_MembersInjector的成员变量mTasksPresenterProvider调用,mTasksPresenterProvider调用get()方法后返回的结果被赋值给TasksActivity实例中的依赖对象mTasksPresenter。

  至此,Dragger2中一个完整的依赖注入过程分析就此结束。诚然,本文只是简单梳理了一下依赖注入的整个流程,对于更深层次的问题,如:Dragger是如何设计.class文件自动生成模板的,自动生成.class文件的具体过程是什么样的等等,本文暂时没有说明,这也是我接下来要做的事情,刚好这几天也在看ARouter的源码,发现其中的依赖注入实现和Dragger2差不多,所以,我打算从多个源码框架中来对比分析和总结Android中的依赖注入实现,待领悟再深入一个层次之后再发一篇总结性文章。
